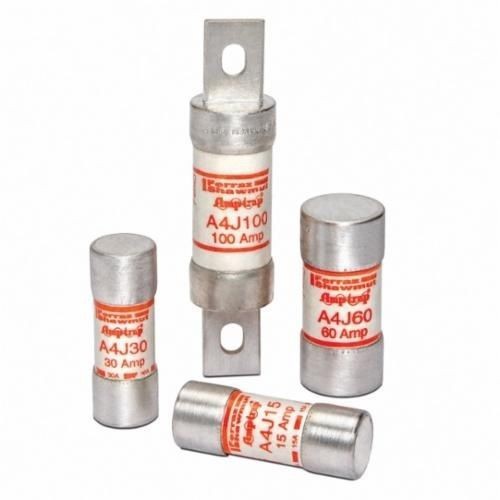

Mersen Amp-Trap® A4J150 Current Limiting Low Voltage Fast Acting Fuse, 150 A, 600 VAC/300 VDC, 200/100 kA, Class J, Cylindrical Body

Selected Mersen Amp-Trap® A4J150 Current Limiting Low Voltage Fast Acting Fuse, 150 A, 600 VAC/300 VDC, 200/100 kA, Class J, Cylindrical Body
Mersen Amp-Trap® A4J150 Current Limiting Low Voltage Fast Acting Fuse, 150 A, 600 VAC/300 VDC, 200/100 kA, Class J, Cylindrical Body

Documents

Short Description

Amp-Trap Fast-Acting A4J fuses deliver excellent current-limiting protection to a wide variety of applications. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings, interrupting ratings, or current-limiting capability.

Features

  • High current limitation for low peak let-thru current
  • Unique dimensions prevent replacement by other fuse classes
  • Fiberglas body provides dimensional stability in harsh industrial environments
  • Easy-to-read imprint label for quick recognition and replacement
  • North American power fuses

Specification

Interrupt Rating
200/100 kA
Material
Polyester
Mounting Type
Holder
Minimum Order Qty
1
Order Interval
1
Amperage Rating
150 A
Body Style
Cylindrical
Class
J
Series
A4J
Terminal Type
Knife Blade
Type
Current Limiting
Voltage Rating
600 VAC/300 VDC
Application
Capacitors, Load centers, Panelboards, Switchboards, Bus Duct, Feeder Circuits, Circuit Breakers, Lighting, Heating and General Loads
Standard & Approvals
UL 248-8 File No. E2137, CSA C22.2 No. 248.8, IEC 269-2-1, RoHS Compliant
Catalog ID
GOUA4J150
Body Size
1-5/8 in Dia x 5-3/4 in L
