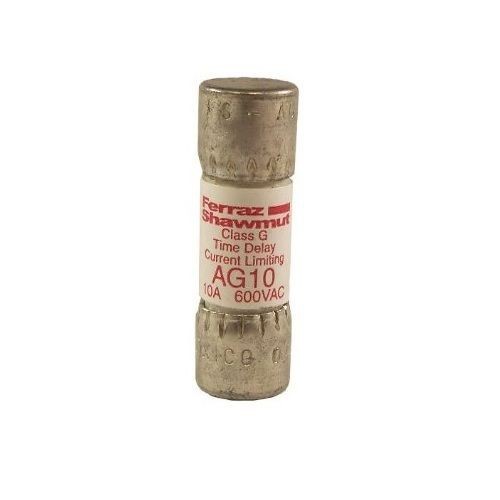

Mersen Amp-Trap® AG10 Current Limiting Low Voltage Time-Delay Fast Acting Fuse, 10 A, 600 VAC, 100 kA, Class G, Cylindrical Body

Selected GOUAG10
GOUAG10

Documents

Short Description

The Mersen Amp-Trap AG fuse series is a complete line of UL Listed Class G fuses with time-delay (above 5A rating). Class G fuses are made in four physical sizes and provide branch-circuit protection for lighting, heating, and appliance circuits.

Features

  • Fiberglass bodies provide dimensional stability in harsh industrial settings
  • Four unique sizes from 1/2 - 60 A do not allow inter-changeability with other fuse classes

Specification

Minimum Order Qty
1
Order Interval
1
Body Style
Cylindrical
Element
Dual
Terminal Type
Ferrule
Voltage Rating
600 VAC
Amperage Rating
10 A
Standard & Approvals
UL 248-5 File E2137, CSA C22.2 No. 248.5, RoHS Compliant
Application
Lighting, Heating and Appliances
Series
AG
Class
G
Catalog ID
GOUAG10
Body Size
0.406 in Dia x 1.31 in L
Mounting Type
Clip
Material
GMG
Interrupt Rating
100 kA
Type
Fast Acting
