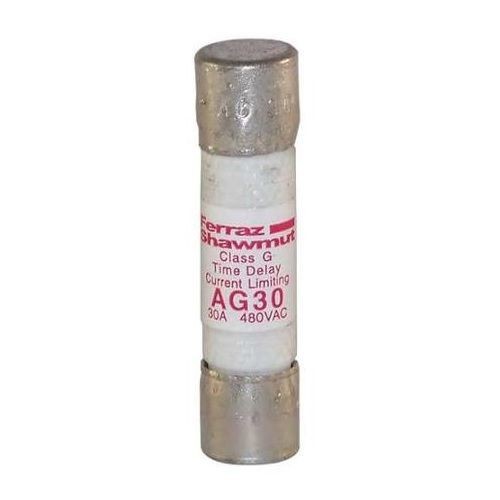

Mersen Amp-Trap® AG30 Current Limiting Low Voltage Time-Delay Fast Acting Fuse, 30 A, 480 VAC, 100 kA, Class G, Cylindrical Body

Selected Mersen Amp-Trap® AG30 Current Limiting Low Voltage Time-Delay Fast Acting Fuse, 30 A, 480 VAC, 100 kA, Class G, Cylindrical Body
Mersen Amp-Trap® AG30 Current Limiting Low Voltage Time-Delay Fast Acting Fuse, 30 A, 480 VAC, 100 kA, Class G, Cylindrical Body

Short Description

The Mersen Amp-Trap AG fuse series is a complete line of UL Listed Class G fuses with time-delay (above 5A rating). Class G fuses are made in four physical sizes and provide branch-circuit protection for lighting, heating, and appliance circuits.

Features

  • Fiberglass bodies provide dimensional stability in harsh industrial settings
  • Four unique sizes from 1/2 - 60 A do not allow inter-changeability with other fuse classes

Specification

Interrupt Rating
100 kA
Material
GMG
Mounting Type
Clip
Series
AG
Terminal Type
Ferrule
Type
Fast Acting
Voltage Rating
480 VAC
Application
Lighting, Heating and Appliances
Standard & Approvals
UL 248-5 File E2137, CSA C22.2 No. 248.5, RoHS Compliant
Amperage Rating
30 A
Body Style
Cylindrical
Class
G
Element
Dual
Body Size
0.406 in Dia x 1.62 in L
