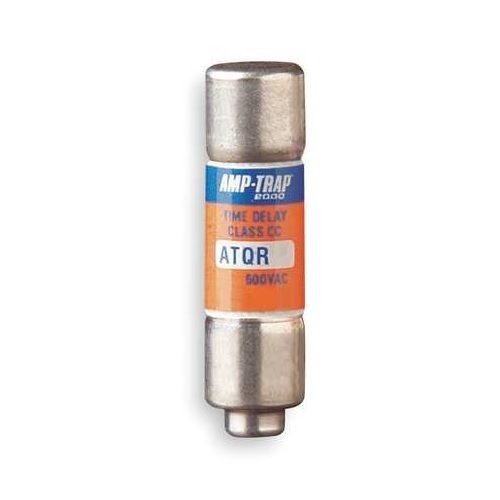

Mersen Amp-Trap® 2000 SmartSpot® ATQR2-1/2 Current Limiting Low Voltage North American Time Delay Power Fuse, 2.5 A, 600 VAC, 200 kA Interrupt, CC Class, Cylindrical Body

Selected Mersen Amp-Trap® 2000 SmartSpot® ATQR2-1/2 Current Limiting Low Voltage North American Time Delay Power Fuse, 2.5 A, 600 VAC, 200 kA Interrupt, CC Class, Cylindrical Body
Mersen Amp-Trap® 2000 SmartSpot® ATQR2-1/2 Current Limiting Low Voltage North American Time Delay Power Fuse, 2.5 A, 600 VAC, 200 kA Interrupt, CC Class, Cylindrical Body

Documents

Short Description

ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersens Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems.

Features

  • Time-delay for control transformer inrush loads without nuisance opening
  • Highly current limiting for low peak let-thru current
  • Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
  • High-visibility orange label ensures instant recognition, and simplifies replacement
  • Metal embossed date and catalog number for traceability and lasting identification
  • Fiberglas body provides dimensional stability in harsh industrial settings
  • High grade silica filler ensures fast arc quenching and high current limitation
  • Tin-plated copper contact material
  • North American power fuses

Specification

Interrupt Rating
200/100 kA
Material
GMG
Mounting Type
Clip
Minimum Order Qty
1
Order Interval
1
Amperage Rating
2.5 A
Body Size
13/32 in Dia x 1-1/2 in L
Body Style
Cylindrical
Catalog ID
GOUATQR2-1/2
Class
CC
Element
Dual
Series
ATQR
Terminal Type
Ferrule
Type
Time Delay
Voltage Rating
600 VAC
Application
Control Transformers, Solenoids, Inductive Loads, Lighting, Heating and General Purpose Loads
Standard & Approvals
UL 248-4, CSA C22.2, No. 248.4
