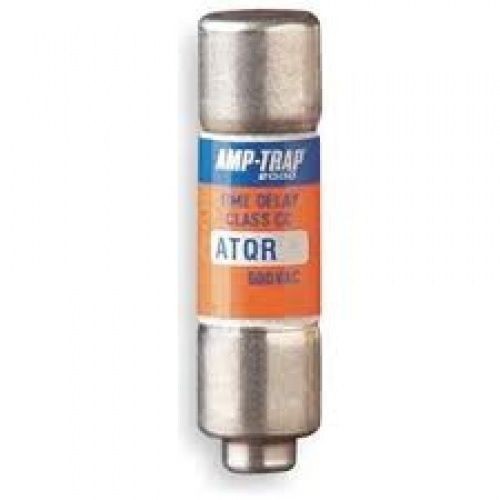

Mersen Amp-Trap® 2000 SmartSpot® ATQR2-8/10 Current Limiting Low Voltage North American Time Delay Power Fuse, 2.8 A, 600 VAC, 200 kA Interrupt, CC Class, Cylindrical Body

Selected Mersen Amp-Trap® 2000 SmartSpot® ATQR2-8/10 Current Limiting Low Voltage North American Time Delay Power Fuse, 2.8 A, 600 VAC, 200 kA Interrupt, CC Class, Cylindrical Body
Mersen Amp-Trap® 2000 SmartSpot® ATQR2-8/10 Current Limiting Low Voltage North American Time Delay Power Fuse, 2.8 A, 600 VAC, 200 kA Interrupt, CC Class, Cylindrical Body

Documents

Short Description

ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersens Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems.

Features

  • Time-delay for control transformer inrush loads without nuisance opening
  • Highly current limiting for low peak let-thru current
  • Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
  • High-visibility orange label ensures instant recognition, and simplifies replacement
  • Metal embossed date and catalog number for traceability and lasting identification
  • Fiberglas body provides dimensional stability in harsh industrial settings
  • High grade silica filler ensures fast arc quenching and high current limitation
  • Tin-plated copper contact material
  • North American power fuses

Specification

Interrupt Rating
200/100 kA
Material
GMG
Mounting Type
Holder
Series
ATQR
Terminal Type
Ferrule
Type
Current Limiting
Voltage Rating
600 VAC
Application
Control Transformers, Solenoids, Inductive Loads, Lighting, Heating and General Purpose Loads
Standard & Approvals
UL 248-4, CSA C22.2, No. 248.4
Amperage Rating
2.8 A
Body Size
13/32 in Dia x 1-1/2 in L
Body Style
Cylindrical
Class
CC
Element
Dual
