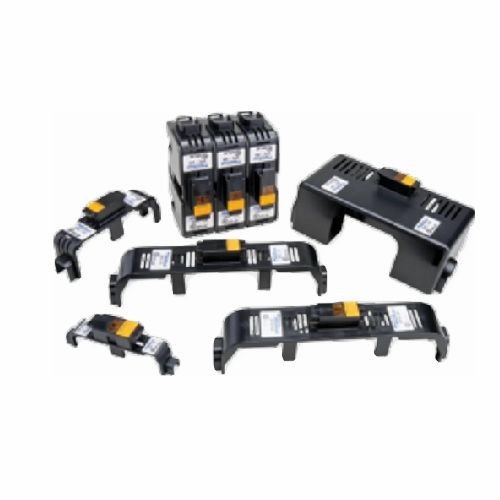

Mersen DFC-10I 1-Pole Dead-Front Fuse Cover With Indicator, 30 A, 250 to 600 VAC/VDC, For Use With AJT, HSJ, A4J Fuse, GFPC

Selected Mersen DFC-10I 1-Pole Dead-Front Fuse Cover With Indicator, 30 A, 250 to 600 VAC/VDC, For Use With AJT, HSJ, A4J Fuse, GFPC
Mersen DFC-10I 1-Pole Dead-Front Fuse Cover With Indicator, 30 A, 250 to 600 VAC/VDC, For Use With AJT, HSJ, A4J Fuse, GFPC

Short Description

MERSEN DFC dead-front fuse covers snap-on to individual fuses installed in fuse blocks, covering exposed live clips and terminals and reducing accidental contact by personnel. They are sized to fit class G, H, J, K, R, CC or midget fuses for increased safety and (optional) open fuse indication. All DFC dead-front fuse covers are reusable when a fuse is replaced - simply detach from the open fuse and reattach to the new replacement fuse. On indicator models an orange indicator light will illuminate to indicate an open fuse. DFC fuse cover ends can be easily cut to accommodate existing wiring, safety switches or special installations. A blank label is provided with each DFC to write in circuit or fuse information.

Features

  • Innovative design provides dead-front electrical safety to personnel
  • Many sizes to fit virtually all popular fuses/fuse blocks
  • Reusable with no changes or additional cost
  • Labels provided for write in identification
  • Low leakage current <0.6 mA at 600 VAC

Specification

Height
1.06 in
Material
GFPC
Standard & Approvals
RoHS Compliant, UL File No. E90426, CSA Class 6228, File No. 70159, UL 94-V2 Flammability Rating, UL Recognized
Amperage Rating
30 A
Length
4.57 in
Width
2.02 in
Voltage Rating
250 to 600 VAC/VDC
Type
1-Pole Dead-Front
Suitable For Use With
AJT, HSJ, A4J Fuse
Series
DFC
