Mersen FSPDB3A Finger Safe Power Distribution Block, 600 VAC, 310 A, 1 Pole, 14 to 2/0 AWG, 6 AWG to 350 kcmil, 14 to 8 AWG Wire

Selected FSPDB3AMersen FSPDB2A Finger Safe Power Distribution Block, 600 VAC, 175 A, 1 Pole, 14 to 2/0 AWG Wire

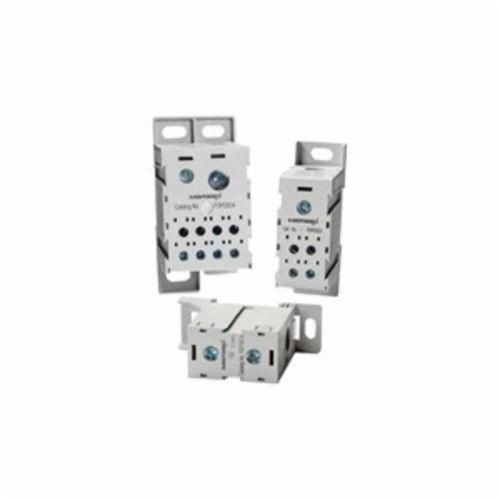

FSPDB3AMersen FSPDB2A Finger Safe Power Distribution Block, 600 VAC, 175 A, 1 Pole, 14 to 2/0 AWG Wire

Documents

Short Description

Mersen FSPDBs introduce a new level of safety and ease for installing power distribution blocks. An IP20 level of finger-safe protection is achieved using FSPDBs, eliminating the need for special covers or custom Plexiglas sheets to protect your panels. FSPDBs (sizes 1 to 4) simply snap onto 35mm DIN rail to provide the quickest installation. Modular design also allows for multi pole applications by use of assembly pins. FSPDBs provide a safe, convenient way of splicing cables, splitting primary power into a variety of secondary circuits or providing a fixed junction tap-off point.

Features

  • Finger-safe protection fully insulated block ensures that no one can touch live parts
  • Recessed termination screws and wire openings provide IP20 grade protection and qualify as finger-safe per IEC 529
  • Compact modularity single or multiple pole configurations in the most compact footprint
  • Allows users to build smaller or higher density panels
  • Snap on DIN rail mounting sizes 1 to 4 feature integral DIN rail adaptors allowing for quick and easy installations on 35mm DIN rail yielding lower installed costs
  • Captive termination screws unique channel design ensures captive metric wire termination screws
  • Screws can never be lost
  • 14 - 2/0 AWG/6 AWG - 350 kcmil aluminum line, 14 - 8 AWG aluminum load, 14 AWG - 350 kcmil , 6 AWG - 400 kcmil, 4 AWG - 600 kcmil
  • Finger-safe terminal blocks
  • (1) Box primary, (8) Box secondary

Specification

Number Of Poles
1
Primary Connections/Pole
1
Secondary Connection/Pole
8
Series
FSPDB
Short Circuit Current Rating
100 kA
Voltage Rating
600 VAC
Wire Size
14 to 2/0 AWG/6 AWG to 350 kcmil
Application
For splicing cables, splitting primary power into secondary circuits and fulfilling requirements for fixed junction tap-off points
Standard & Approvals
CSA Class 6228, File No. 69363 Certified, CE Marked, IEC-947-7-1, 529, 68-2-6, RoHS Complaint, UL Guide No. XCFR2, File No. File E73571 Listed
Amperage Rating
310 A
Dimensions
3.97 in H x 1.85 in W x 2.53 in D
Color
Gray
Finish
Tin Plated
