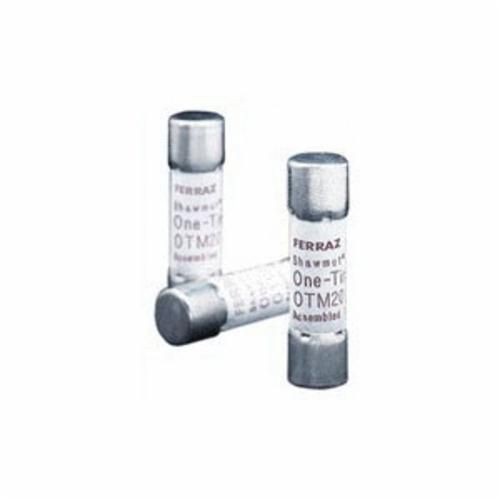

Mersen OTM10 Low Voltage Fast Acting Fuse, 10 A, 250 VAC, 10 kA, Class Midget, Cylindrical Body

Selected OTM2Mersen OTM10 Low Voltage Fast Acting Fuse, 10 A, 250 VAC, 10 kA, Class Midget, Cylindrical Body
OTM2Mersen OTM10 Low Voltage Fast Acting Fuse, 10 A, 250 VAC, 10 kA, Class Midget, Cylindrical Body

Documents

Short Description

One-time OTM midget fuses provide low cost protection for 250 volt AC general purpose lighting, heating, control circuits, etc. where time-delay is not required. (Not for Branch Circuit Protection).

Features

  • Low cost and fully rated for economy without compromise
  • Tin-plated Copper contact
  • Can be used with UltraSafe™ fuse holders

Specification

Interrupt Rating
10 kA
Material
Paper
Mounting Type
Clip
Minimum Order Qty
1
Order Interval
1
Body Size
13/32 in Dia x 1-1/2 in L
Body Style
Cylindrical
Catalog ID
GOUOTM10
Class
Midget
Terminal Type
Ferrule
Type
Fast Acting
Voltage Rating
250 VAC
Standard & Approvals
UL File No. E33925, C22.2 No. 248.14, RoHS Compliant
Amperage Rating
10 A
Application
For supplemental protection of circuits up to 250 VAC and 10 kA
Series
OTM
Response Time
1.7 sec
