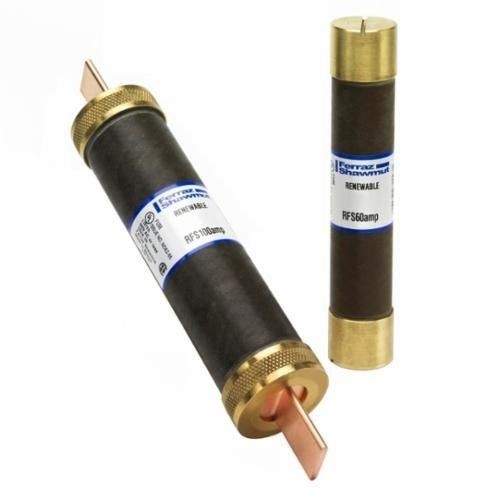

Mersen RFS100 Fast Acting Low Voltage North American Style Renewable Fuse, 100 A, 600 VAC, 10 kA Interrupt, H Class, Cylindrical Body

Selected GOURFS100
GOURFS100

Documents

Short Description

RFS general purpose class H renewable fuses are suitable for application where available short circuit currents do not exceed 10000 A. For replacement fuse links select RLS series die cut zinc replacement links from 3 to 600 A in 30 ratings.

Features

  • Knurled bushings for ease-of disassembly
  • Rugged construction for maximum service life
  • Precision die cut renewal links renew quickly and give repeatable performance

Specification

Interrupt Rating
10 kA
Mounting Type
Clip
Series
RFS
Terminal Type
Blade
Type
Fast Acting Low Voltage North American Style
Voltage Rating
600 VAC
Application
For general purpose loads where short circuit currents are 10000 A or less
Standard & Approvals
UL 248-7 Guide JDRX File No. E2137, E3978, CSA C22.2 File No. 248.7, Class 1421-02 File No. 012636_0_000
Amperage Rating
100 A
Body Size
1-5/16 in Dia x 7-7/8 in L
Body Style
Cylindrical
Class
H
