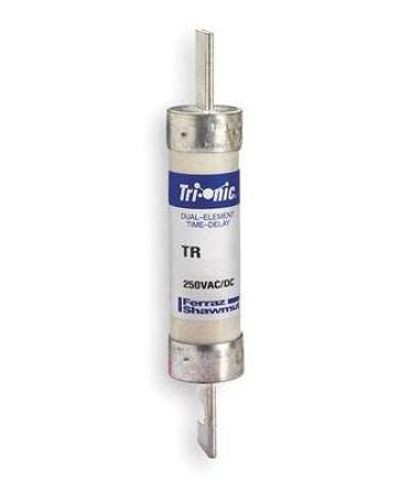

Mersen Tri-Onic® TR200R Current Limiting Low Voltage Time Delay Fuse, 200 A, 250 VAC/VDC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body
Mersen Tri-Onic® TR200R Current Limiting Low Voltage Time Delay Fuse, 200 A, 250 VAC/VDC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body
SKU: GOUTR200R
Manufacturer Part Number: TR200R
UPC: 782001748081
Documents
Specification
| Interrupt Rating | 200/20 kA |
|---|---|
| Material | Polyester |
| Mounting Type | Holder |
| Series | TR-R |
| Terminal Type | Knife Blade |
| Type | Current Limiting |
| Voltage Rating | 250 VAC/VDC |
| Application | Motor Circuits, Mains, Feeders, Branch Circuits, Transformers, Service Entrance Equipment and General Purpose Equipment |
| Standard & Approvals | UL 248-12 File E2137, CSA C22.2 No. 248.12, Rohs Compliant |
| Amperage Rating | 200 A |
| Body Size | 1-9/16 in Dia x 7-1/8 in L |
| Body Style | Cylindrical |
| Class | RK5 |
| Element | Dual |
