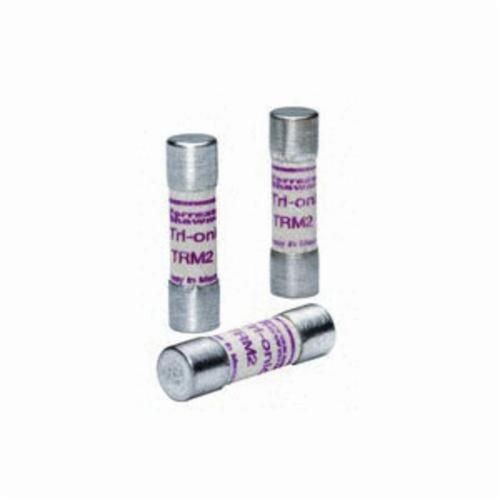

Mersen TRM2-1/2 Low Voltage Time Delay Fuse, 2.5 A, 250 VAC, 10 kA, Class Midget, Cylindrical Body

Selected TRM4-1/2Mersen TRM1-6/10 Low Voltage Time Delay Fuse, 1.6 A, 250 VAC, 10 kA, Class Midget, Cylindrical Body
TRM4-1/2Mersen TRM1-6/10 Low Voltage Time Delay Fuse, 1.6 A, 250 VAC, 10 kA, Class Midget, Cylindrical Body

Documents

Short Description

Tri-Onic TRM time-delay midget fuses are rated 250VAC and are offered in 36 ampere ratings from 1/10A to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).

Features

  • Numerous ratings for a wide variety of applications
  • Time delay for circuits with high inrush current
  • Tin-plated Copper contact
  • Can be used with UltraSafe™ fuse holders
  • Poly Tube

Specification

Interrupt Rating
10 kA
Material
Poly
Mounting Type
Clip
Minimum Order Qty
1
Order Interval
1
Amperage Rating
2.5 A
Body Size
13/32 in Dia x 1-1/2 in L
Body Style
Cylindrical
Class
Midget
Series
TRM
Terminal Type
Ferrule
Type
Time Delay
Voltage Rating
250 VAC
Application
Small Motors, Small Transformers, Lighting Circuits and Control Circuits
Standard & Approvals
UL File No. E33925, C22.2 No. 248.14, RoHS Compliant
Response Time
4 sec
Catalog ID
GOUTRM2-1/2
