Mersen UltraSafe™ USM1 Fuse Holder, 800 VAC/1000 VDC, 30 A, 14 to 6 AWG Wire, 1 Pole

Selected USM1Mersen UltraSafe™ USM1 Fuse Holder, 800 VAC/1000 VDC, 30 A, 14 to 6 AWG Wire, 1 Pole
USM1Mersen UltraSafe™ USM1 Fuse Holder, 800 VAC/1000 VDC, 30 A, 14 to 6 AWG Wire, 1 Pole

Documents

Short Description

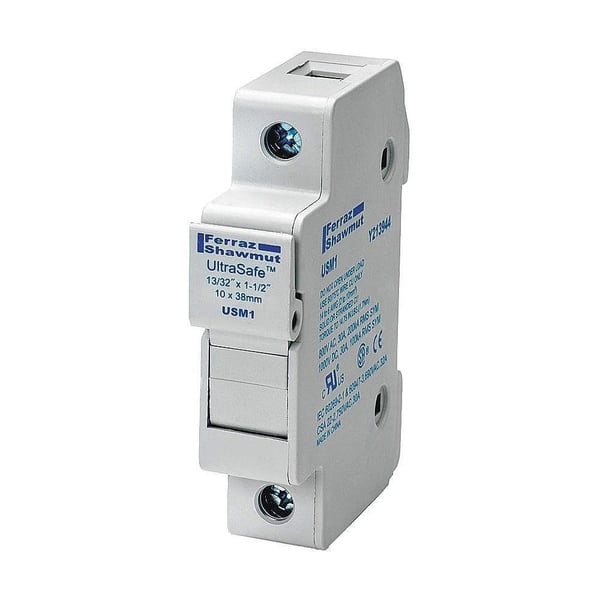

Mersen UltraSafe modular fuse holders introduce a new level of safety for class CC and midget fuses up to 30 amperes. UltraSafe fuse holders qualify as "finger safe" under IEC and DIN standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). UltraSafe fuse holders are available in 1, 2, 3 or 4 poles, with or without visual blown-fuse indicators in each pole. Multiple poles can be assembled in the field by ordering and installing pin-tie handles. UltraSafe fuse holders save up to 15% mounting space and any combination can be snapped onto 35mm DIN rail for extra savings in panel building time. Choose class CC fuses for Type "2" no-damage protection, one of the safest protection packages in the industry. The UltraSafe body material is tough and durable polyamide, with exceptional insulating properties.

Features

  • IP20 Finger-Safe (touch safe)
  • Optional visual blown fuse Indicator lights
  • Compact footprint
  • Quick, tool-free, easy fuse change outs
  • All circuits up to 600 volts for motors, control circuits, transformers
  • DC circuits up to 1000VDC including photovoltaic applications
  • Non-load disconnect
  • NO 14 to 6 AWG (2.5 to 16 sq-mm) single conductor
  • Tin-plated copper contact material
  • 200 AC/100 DC kA SCCR
  • For use with ATQ, ATM*, A6Y-2B, A25Z-2, TRM, OTM, A13X-2, A60Q-2, DCT*, HP6M, HP10M
  • Solid/stranded copper wire type
  • UL 94-V0 flammability rating
  • Phillips/slot head terminal screws
  • 14.75 in-lb screw torque
  • 3 W or less watts loss

Specification

Fuse Diameter
13/32 in
Fuse Length
1-1/2 in
Material
Polyamide
Mounting Type
DIN Rail
Number Of Poles
1
Minimum Order Qty
1
Order Interval
1
Amperage Rating
30 A
Class
Midget
Connection Type
Pressure Plate
Temperature Rating
-40 to 85 deg C
Wire Size
14 to 6 AWG
Dimensions
3.07 in H x 0.69 in W x 2.32 in D
Catalog ID
GOUUSM1
Standard & Approvals
UL 4248-14 Listed, File No. E52283, CSA C22.2 Certified, Class 6225, File No. 32169, IEC Compliant to 60269-2-1, 60947-3 Standard, CE Marked, RoHS Compliant
Voltage Rating
800 VAC/1000 VDC
Suitable For Use With
Midget and Class CC Fuses
Series
USM
