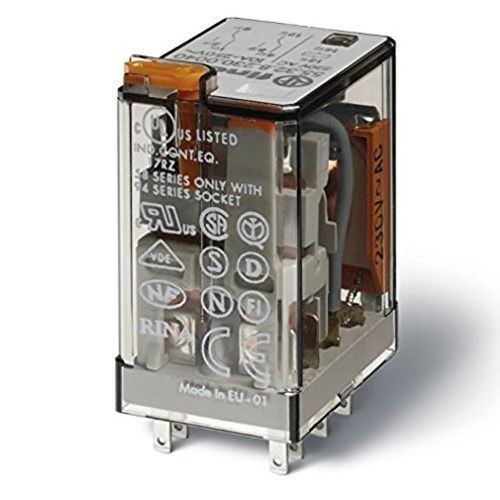

Finder® 55.32.8.120.0040 55 Series Miniature Standard General Purpose Relay, 10 A, 2CO/DPDT Contact, 120 VAC V Coil
Selected 55.32.8.120.0040Finder® 55.32.8.120.0040 55 Series Miniature Standard General Purpose Relay, 10 A, 2CO/DPDT Contact, 120 VAC V Coil
Finder® 55.32.8.120.0040 55 Series Miniature Standard General Purpose Relay, 10 A, 2CO/DPDT Contact, 120 VAC V Coil
SKU: F-R55.32.8.120.0040
Manufacturer Part Number: 55.32.8.120.0040
Features
- Lockable test button and mechanical indicator
- 20 A peak current
- Standard AgNi contact material
- 0.37 kW single phase motor rating (230 VAC)
- 300 mW minimum switching load
- 9 ms operate and 3 ms release time
- 1000 VAC dielectric strength between open contacts
- RT I environmental protection
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Mounting Type | Socket |
| Number Of Poles | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | F-R55.32.8.120.0040 |
| Coil Voltage | 120 VAC |
| Contact Form | DPDT 2CO |
| Contact Rating | 250/400 VAC |
| Dimensions | 27.7 in H x 20.7 in W x 37.2 in D |
| Display | Mechanical |
| Power Rating | 1.5 VA |
| Series | 55 |
| Temperature Rating | -40 to 85 deg C |
| Terminal Type | Plug-In |
| Type | Miniature Standard |
| Application | Air Conditioners, Automatic Car-Washes, Automation for Blinds, Grilles and Shutters, Alarm Systems, Automation Control, Back-Up Generators, Bottling Plant, Building Automation, Burners, Boilers and Furnaces, Carousel Warehouses, Circuit Boards for Caravans, Circuit Boards for Household Equipment, Coffee Machines, Coil Winders, Confectionary Machines, Control and Management of Electric Power, Control Panels, Control Panels for Pumps and Control Systems |
| Standard & Approvals | CE Marked, CSA/RINA/VDE Certified, ANCE Approved |
| Amperage Rating | 10 A |
