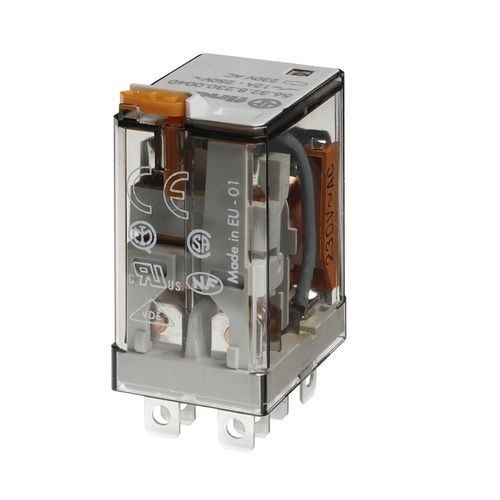

Finder® 56.32.9.024.0040 56 Series Miniature Standard Power Relay, 12 A, 2CO/DPDT Contact, 24 VDC V Coil
Selected 56.32.9.024.0040Finder® 56.32.9.024.0040 56 Series Miniature Standard Power Relay, 12 A, 2CO/DPDT Contact, 24 VDC V Coil
Finder® 56.32.9.024.0040 56 Series Miniature Standard Power Relay, 12 A, 2CO/DPDT Contact, 24 VDC V Coil
SKU: F-R56.32.9.024.0040
Manufacturer Part Number: 56.32.9.024.0040
Features
- AgNi standard contact material
- AC coils and DC coils
- Lockable test button and mechanical flag indicator
- Cadmium free contacts (standard version)
- Coil EMC suppression
- 20 A maximum peak current
- 0.55 kW single-phase motor rating (230 VAC )
- 500 mW minimum switching load
- 8 ms operate time
- 4 ms release time
- 4 kV insulation between coil and contacts
- 1000 VAC dielectric strength between open contacts
Specification
| Mounting Type | Plug-In |
|---|---|
| Number Of Poles | 2 |
| Temperature Rating | -40 to 70 deg C |
| Coil Voltage | 24 VDC |
| Standard & Approvals | cULus Listed, CSA Certified, PCT Approval, VDE Certificate, RINA Certification, CE Listed, Lloyd's Register |
| Application | Air Conditioners, Automatic Car-Washes, Alarm Systems and Back-Up Generators |
| Type | Miniature Standard |
| Terminal Type | Quick Connect |
| Series | 56 |
| Dimensions | 37.2 in H x 27.7 in W x 20.7 in D |
| Amperage Rating | 12 A |
| Contact Form | 2CO (DPDT) |
