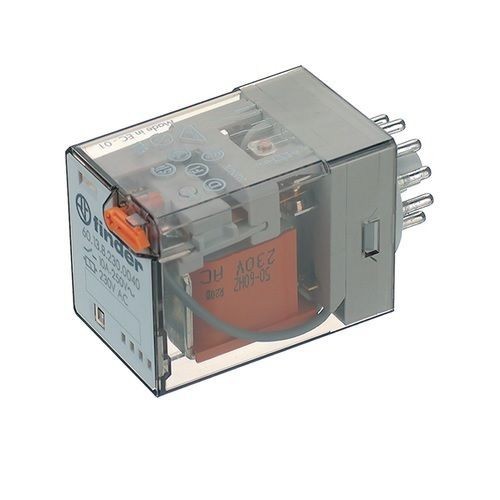

Finder® 60.12.8.120.0040 60 Series Standard General Purpose Relay, 10 A, 8 Pin, 2CO/DPDT Contact, 120 VAC V Coil
Selected F R60.12.8.120.0040
Finder® 60.12.8.120.0040 60 Series Standard General Purpose Relay, 10 A, 8 Pin, 2CO/DPDT Contact, 120 VAC V Coil
SKU: F-R60.12.8.120.0040
Manufacturer Part Number: 60.12.8.120.0040
Documents
Features
- Lockable test button and mechanical indicator
- Standard cadmium free (preferred version) contact material
- 0.37 kW single phase motor rating (230 VAC)
- 500 mW minimum switching load
- 11 ms operate and 4 ms release time
- 1000 VAC dielectric strength between open contacts
- RT I environmental protection
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Mounting Type | Flange/Socket |
| Number of Pins | 8 |
| Number Of Poles | 2 |
| Power Rating | 2.2 VA |
| Series | 60 |
| Temperature Rating | -40 to 70 deg C |
| Terminal Type | Plug-In |
| Type | Standard |
| Application | Air Conditioners, Automatic Car-Washes, Automation for Blinds, Grilles and Shutters, Alarm Systems, Automation Control, Back-Up Generators, Bottling Plant, Building Automation, Burners, Boilers and Furnaces, Carousel Warehouses, Circuit Boards for Caravans, Circuit Boards for Household Equipment, Coffee Machines, Coil Winders, Confectionary Machines, Control and Management of Electric Power, Control Panels, Control Panels for Pumps and Control Systems |
| Standard & Approvals | CE Marked, CSA/RINA/VDE Certified, cULus Listed |
| Dimensions | 54.2 in H x 36.4 in W x 33.5 in D |
| Coil Voltage | 120 VAC |
| Contact Form | DPDT 2CO |
| Contact Rating | 250/400 VAC |
| Display | Mechanical |
| Amperage Rating | 10 A |
