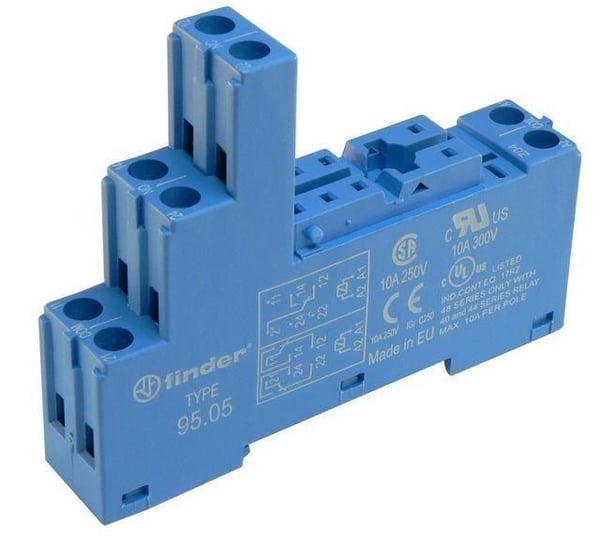

Finder® 95.05 95 Series Relay Socket, 250 VAC, 10 A, For Use With 40.51, 40.52, 40.61 Miniature PCB and Plug-In Relay, 8 Pin
Selected 95.05Finder® 95.05 95 Series Relay Socket, 250 VAC, 10 A, For Use With 40.51, 40.52, 40.61 Miniature PCB and Plug-In Relay, 8 Pin
Finder® 95.05 95 Series Relay Socket, 250 VAC, 10 A, For Use With 40.51, 40.52, 40.61 Miniature PCB and Plug-In Relay, 8 Pin
SKU: F-R95.05
Manufacturer Part Number: 95.05
Features
- 6 kV (1.2/50 us) dielectric strength between coil and contacts
- 0.5 nm screw torque
- 8 mm wire strip length
- 1 x 10 AWG/2 x 14 AWG solid wire
- 1 x 12 AWG/2 x 14 AWG stranded wire
- Panel or 35 mm rail mount
- Screw terminal (box clamp) socket
Specification
| Mounting Type | DIN Rail/Panel |
|---|---|
| Number of Pins | 8 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Blue |
| Dimensions | 78.6 mm L x 15.8 mm W x 75.3 mm H |
| Enclosure Type | IP20 |
| Temperature Rating | -40 to 70 deg C |
| Voltage Rating | 250 VAC |
| Standard & Approvals | CE Marked, CSA/EAC Certified, cRUus Listed |
| Amperage Rating | 10 A |
| Terminal Type | Screw/Clamp |
| Suitable For Use With | 40.51, 40.52, 40.61 Miniature PCB and Plug-In Relays |
| Series | 95 |
| Catalog ID | F-R95.05 |
