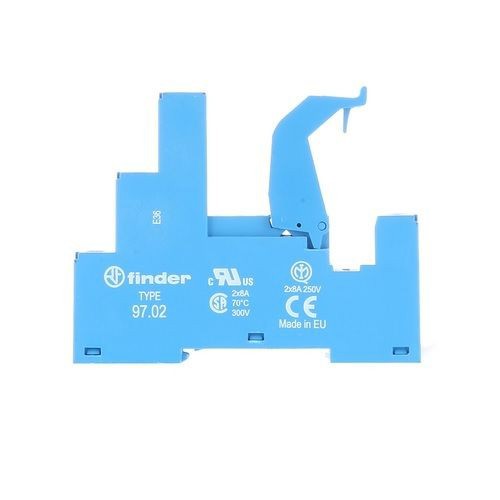

Finder® 97.02SPA 97 Series Relay Socket, 250 VAC, 8 A, For Use With 46.52 Miniature Industrial Relay, 8 Pin, 2 Poles
Selected 97.02SPAFinder® 97.02SPA 97 Series Relay Socket, 250 VAC, 8 A, For Use With 46.52 Miniature Industrial Relay, 8 Pin, 2 Poles
Finder® 97.02SPA 97 Series Relay Socket, 250 VAC, 8 A, For Use With 46.52 Miniature Industrial Relay, 8 Pin, 2 Poles
SKU: F-R97.02SPA
Manufacturer Part Number: 97.02SPA
Features
- Requires 095.00.4 identification tag, 095.18.0 black 8-way jumper link, 99.02 coil indication and EMC suppression modules, 86.30 timer modules
- 6 kV (1.2/50 us) dielectric strength between coil and contacts
- 0.8 nm screw torque
- 8 mm wire strip length
- 1 x 10 AWG/2 x 14 AWG solid wire
- 1 x 12 AWG/2 x 14 AWG stranded wire
- Panel or 35 mm rail (EN 60715) mount
- Screw terminal (box clamp) socket
Specification
| Mounting Type | DIN Rail/Panel |
|---|---|
| Number Of Poles | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Color | Blue |
| Enclosure Type | IP20 |
| Temperature Rating | -40 to 70 deg C |
| Terminal Type | Screw |
| Voltage Rating | 250 VAC |
| Number of Pins | 8 |
| Catalog ID | F-R97.02SPA |
| Amperage Rating | 8 A |
| Standard & Approvals | CE Marked, cRUus Listed, CSA Certified |
| Suitable For Use With | 46.52 Miniature Industrial Relay |
| Dimensions | 82.9 mm L x 15.8 mm W x 68.4 mm H |
| Series | 97 |
| Includes | 97.01 Plastic Retain and Release Clip |
