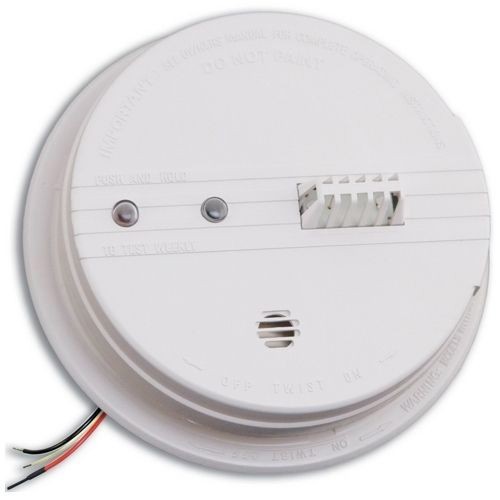

Firex® by Kidde® HD135F Wire-In Heat Detector Alarm, 10 ft Detection, Heat Sensor, 9 VDC Battery, LED Display

Selected HD135FFirex® by Kidde® HD135F Wire-In Heat Detector Alarm, 10 ft Detection, Heat Sensor, 9 VDC Battery, LED Display
HD135FFirex® by Kidde® HD135F Wire-In Heat Detector Alarm, 10 ft Detection, Heat Sensor, 9 VDC Battery, LED Display

Documents

Short Description

The Kidde® HD135F is a 120 VAC wire in heat alarm that responds to temperature rather than smoke. The alarm will sound if temperatures rise above 135 deg F. The Kidde® HD135F is interconnectable. The interconnect system must not exceed the NFPA limit of 18 initiating devices (smoke, heat, CO, etc) interconnected, it is still possible to interconnect 6 strobe lights and or relay modules.

Features

  • Test button tests units electronic circuitry, horn and battery function
  • 9 VDC battery backup provides continuous protection even during power outages
  • Red LED flashes every 30 to 40 s to indicate proper operation
  • Low battery indicator alerts user in the event of a low or missing battery
  • Quick connect power harness makes installation fast and easy
  • Interconnects with up to 24 Kidde® devices of which 18 can be initiating
  • The Kidde HD135F 120 VAC wire in heat alarm gives you and your family an early warning to dangerous temperatures of 135 deg F or more
  • This unit also includes a tamper-resistant pin that helps to deter thief and tampering
  • This unit can be used as a single station unit or it can be interconnected to up to 24 Kidde devices in a multiple station arrangement

Specification

Power Source
9 VDC Battery
Minimum Order Qty
1
Order Interval
1
Color
White
Detection Range
10 ft
Catalog ID
KIDHD135F
Alarm Type
Audio
Type
Wire-In
Dimensions
5 in Dia x 2 in D
Humidity Rating
5 to 95 %
Operating Temperature
-20 to 100 deg F
Standard & Approvals
UL 217, NFPA 72, NFPA 101, FHA Certified, HUD Certified
Sensor Type
Heat
Display Type
LED
