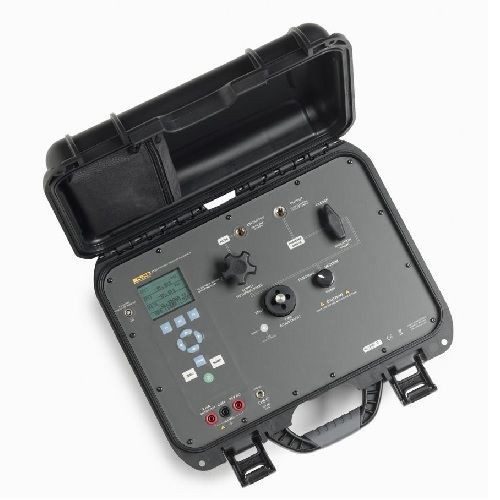

Fluke® 3130-G2M Portable Pressure Calibrator, -80 kPa to 2 MPa, 0 to 2 MPa Pressure, +/-0.025% Accuracy

Selected Fluke® 3130-G2M Portable Pressure Calibrator, -80 kPa to 2 MPa, 0 to 2 MPa Pressure, +/-0.025% Accuracy
Fluke® 3130-G2M Portable Pressure Calibrator, -80 kPa to 2 MPa, 0 to 2 MPa Pressure, +/-0.025% Accuracy

Short Description

The 3130 portable pneumatic pressure calibrator is ideal for calibrating pressure transmitters, transducers, gauges and similar devices. The 3130 contains everything you need to generate, control and measure pressure, as well as read the output of the device under test (DUT).

Features

  • Measure and generate pressures from vacuum to 2 MPa (300 psi, 20 bars)
  • Internal pump can generate vacuum to -80 kPa (-12 psi, 0.8 bars) or pressure to 2 MPa (300 psi, 20 bars)
  • Supply pressure connection allowing the use of external gas supply up to 2 MPa (300 psi, 20 bar)
  • Includes variable volume for fine adjustment of pressures
  • Pressure measurement accuracy of +/-0.025% reading + 0.01% FS
  • Electrical measurement and 24 VAC supply for close looped calibrations
  • Measure or generate 4 to 20 mA
  • Measure 0 to 30 VDC
  • Compatible with Fluke® 700P and 750P pressure modules
  • 80 kPa to 2 MPa internal pump pressure, 0 to 2 MPa external air

Specification

Length
15-1/4 in
Pressure Rating
-80 kPa to 2 MPa, 0 to 2 MPa
Series
3130
Type
Portable
Width
12 in
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
Accuracy
+/-0.025%
Includes
Manual, NIST-Traceable Certificate, Test Leads, Universal AC Adapter/Charger
Depth
7
