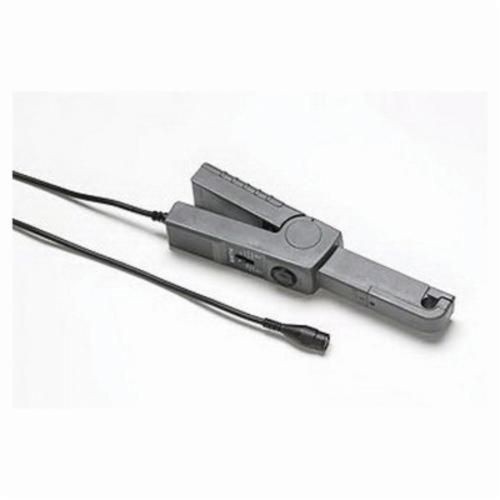

Fluke® 80I-110S AC/DC Current Clamp, 300/600 VAC, 10/100 A, CAT II 600 V/CAT III 300 V, 12.99 in L

Selected 80I-110SFluke® 80I-110S AC/DC Current Clamp, 300/600 VAC, 10/100 A, CAT II 600 V/CAT III 300 V, 12.99 in L
80I-110SFluke® 80I-110S AC/DC Current Clamp, 300/600 VAC, 10/100 A, CAT II 600 V/CAT III 300 V, 12.99 in L

Documents

Short Description

The 80I-110s is compatible with any Fluke ScopeMeter Test Tool, Power Harmonics Analyzer, Oscilloscope, Multimeter, or other voltage measurement device that has the following features: BNC input connectors or if using a meter convert the banana plugs to a BNC connector using the adapter PM9081/001.

Features

  • Hard plastic enclosure
  • Nominal current range - 10 A, AC/DC, 100 A, AC/DC, Continuous current range 0.1 A - 10 A AC/DC, 1 A - 100 A AC/DC
  • Maximum non-destructive current 140 A - 2 kHz AC/DC
  • Lowest measurable current 0.1 A
  • Basic accuracy 100 mV/A setting - 50 mA to 10 A +/- 3% of reading +50 mA, 10 mV/A setting - 50 mA to 40 A +/-4% of reading +50 mA, 40 A to 80 A +/- 12% of reading +50 mA, 80 to 100 A +/- 15% of reading
  • Useable frequency - DC - 100 kHz
  • Output level(s) - 10 A range - 100 mV/A, 100 A range - 10 mV/A
  • 9 V, 55 h battery life
  • 1.6 m output cable length

Specification

Length
12.99 in
Safety Rating
CAT II 600 V, CAT III 300 V
Suitable For Use With
Fluke ScopeMeter Test Tools
Voltage Rating
300/600 VAC
Amperage Rating
10/100 A
Diameter
11.8 mm
