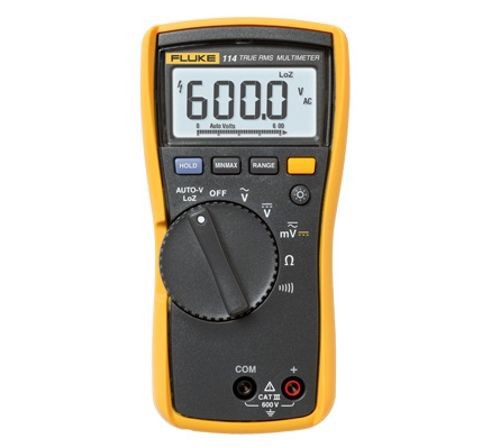

Fluke® FLUKE-114 Compact Digital Multimeter, 600 VDC/VAC, 40 MOhm Measuring, 6/60/600 VAC/VDC, 0.1 Ohm to 40 MOhm, Digital Display

Selected Fluke® FLUKE-114 Compact Digital Multimeter, 600 VDC/VAC, 40 MOhm Measuring, 6/60/600 VAC/VDC, 0.1 Ohm to 40 MOhm, Digital Display
Fluke® FLUKE-114 Compact Digital Multimeter, 600 VDC/VAC, 40 MOhm Measuring, 6/60/600 VAC/VDC, 0.1 Ohm to 40 MOhm, Digital Display

Short Description

Fluke 114 true-rms digital multimeter is the perfect troubleshooting tool for go/no go testing. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. The LoZ function helps identify so-called ghost voltage and prevent false readings. The Fluke 114 displays true-rms voltage and current readings with 6000 count resolution, and tests frequency, continuity and resistance. A large white LED backlight aids work in poorly lit areas. Its easy-open battery access door makes battery changes easy. Fluke 114 multimeters are independently tested for safe use in CAT III 600V environments. And check out other members of the Fluke 110 family: the Fluke 113 Utility Multimeter, the Fluke 115 Field Service Multimeter, the Fluke 116 HVAC Multimeter and the Fluke 117 Commercial Electrician’s Multimeter.

Features

  • AutoVolt automatic ac/dc voltage selection
  • Low input impedance helps prevent false readings due to ghost voltage
  • Work in poorly lit areas with the large white LED backlit display
  • Resistance and continuity
  • Record signal fluctuations using min/max/average
  • Integral holster with probe holders for easy storage
  • Auto and manual ranging
  • Optional TPAK magnetic hanger allows the user hands-free flexibility
  • 2 deg pollution
  • 0.5 % + 2 VDC accuracy
  • DC voltage 600 mV, 6 V, 60 V, 600 V with accuracy of +/-(0.5% + 2)
  • AC voltage at 45 Hz to 500 Hz- 600 V with accuracy of +/-( 2 % + 3), at 500 Hz to 1 kHz- 600 V with accuracy of +/-(4 % + 3), at 45 Hz to 500 Hz- 600 mV, 6 V, 60 V, 600 V with accuracy of +/-(1 % + 3), at 500 Hz to 1 kHz- 600 mV, 6 V, 60 V, 600 V with accuracy of +/-(2 % + 3)
  • Resistance range- 600 Ohm with accuracy of +/-(0.9% + 2), 6 kOhm, 60 kOhm, 600 kOhm, 6 MOhm with accuracy of +/-(0.9% + 1), 40 MOhm with accuracy of +/-(1.5% + 2)
  • 400 hrs typical alkaline, without backlight
  • Digital 6000 count, update 4/sec display

Specification

Measuring Range
600 VDC/VAC, 40 MOhm
Minimum Order Qty
1
Order Interval
1
Accuracy
1.0% + 3 (45 to 500 Hz), 2.0% + 3 (500 Hz to 1 kHz) AC Voltage
Battery Type
9 V Alkaline, NEDA 1604A/IEC 6LR61
Capacitance
9999 uF
Catalog ID
FLKFLUKE-114
Dimensions
1.81 in L x 3.35 in W x 6.58 in H
Diode Test
2 V +/- (0.9% + 2)
Enclosure Type
Hard Plastic
Resistance
40 MOhm
Safety Rating
CAT III 600 V
Temperature Rating
14 to 122 deg F
Type
Compact
Voltage Rating
6/60/600 VAC/VDC
Standard & Approvals
CE Certified, CSA Certified, UL Listed
