Fluke® SureGrip™ ToolPak® FLUKE-179/EDA2 Digital Multimeter Combo Kit, 1000 VAC/VDC, 10 A, 50 MOhm, Digital Display

Selected FLUKE-179/EDA2Fluke® SureGrip™ ToolPak® FLUKE-179/EDA2 Digital Multimeter Combo Kit, 1000 VAC/VDC, 10 A, 50 MOhm, Digital Display
FLUKE-179/EDA2Fluke® SureGrip™ ToolPak® FLUKE-179/EDA2 Digital Multimeter Combo Kit, 1000 VAC/VDC, 10 A, 50 MOhm, Digital Display

Documents

Short Description

We know industrial electricians work in tough environments, that's why we have kitted our Fluke 179 True RMS digital multimeter with industrial strength test lead probe kit in a compact lightweight soft case. This kit includes AC220 SureGrip™, Alligator Clips TP220 SureGrip™, Test Probes, TL224 SureGrip™, Silicone Test Leads and ToolPak, magnetic meter-hanger backed by a limited lifetime warranty on the multimeter, and 1-year on all accessories.

Features

  • Temperature rating 10 to 50 deg C
  • Diode test range 2.4 V +/- (1% + 2)
  • Battery type alkaline
  • Safety rating CAT IV 600 V and CAT III 1000 V
  • Digital 6000 count, update 4/sec, bar graph 33 segments, update 40/sec
  • DC voltage 600 mV, 6 V, 60 V, 600 V with accuracy of +/-(0.09% + 2), 1000 V with accuracy of +/-(0.1% + 2)
  • AC voltage 600 mV, 6 V, 60 V, 600 V, 1000 V with accuracy of +/-(1 % + 3) at 45 Hz to 500 Hz, +/-(2 % + 3) at 500 Hz to 1 kHz
  • DC current range - 60 mA, 400 mA, 6 A, 10 A with accuracy of +/-(1% + 3)
  • AC current range- 60 mA, 400 mA, 6 A, 10 A with accuracy of +/-(1.5 % + 3)
  • Resistance range- 600 Ohm with accuracy of +/-(0.9% + 2), 6 kOhm, 60 kOhm, 600 kOhm, 6MOhm with accuracy of +/-(0.9% + 1), 50 MOhm with accuracy of +/-(1.5% + 3)
  • Capacitance range 1000 nF, 10 uF, 100 uF with accuracy of +/-(1.2 % + 2), 9999 uF with accuracy of +/-10 % typical
  • Frequency range- 99.99Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz with accuracy of (0.1 % + 1)
  • 200 hrs typical Alkaline

Specification

Number of Pieces
9
Specifications
1000 VDC/VAC, 10 A, 50 MOhm
Temperature Rating
-10 to 50 deg C
Voltage Rating
1000 VAC/VDC
Standard & Approvals
CSA Certified, TUV (EN61010), Australian (N10140) Registered
Dimensions
185 mm H x 90 mm W x 43 mm D
Includes

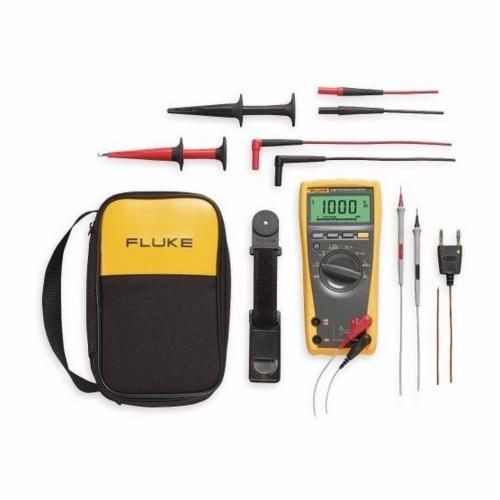

Fluke 179 Multimeter, 80BK-A Integrated DMM Temperature Probe, Installed 9 V Battery, AC280 SureGrip™ Hook Clips, TL910 Electronic Test Probes, TL224 SureGrip™ Insulated Test Leads, TPAK ToolPak™ Magnetic Meter Hanger, Soft Carry Case, User Manual
