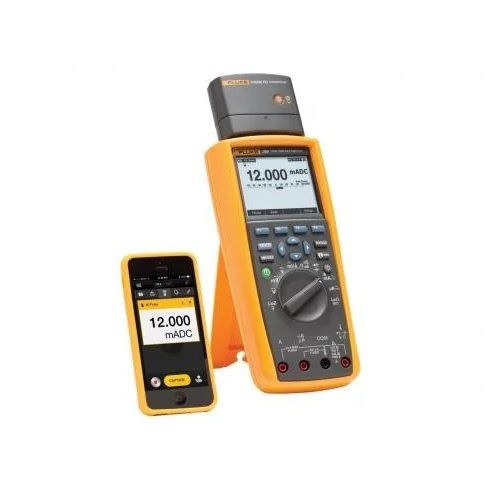

Fluke® FLUKE-289 Digital Multimeter, 1000 VDC/VAC, 10 A, 500 MOhm Measuring, 1000 VAC/VDC, 10 A, 500 Ohm to 50 MOhm, Dot Matrix Display

Selected Fluke® FLUKE-289 Digital Multimeter, 1000 VDC/VAC, 10 A, 500 MOhm Measuring, 1000 VAC/VDC, 10 A, 500 Ohm to 50 MOhm, Dot Matrix Display
Fluke® FLUKE-289 Digital Multimeter, 1000 VDC/VAC, 10 A, 500 MOhm Measuring, 1000 VAC/VDC, 10 A, 500 Ohm to 50 MOhm, Dot Matrix Display

Documents

Short Description

Fluke 289 is the next generation high performance industrial logging multimeter designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. With the ability to log data and review it graphically on-screen, you can solve problems faster and help minimize downtime. Let the new 289 be your watchdog for systems or processes while you are off solving other problems.

Features

  • TrendCapture quickly graphically displays logged data session to quickly determine whether anomalies may have occurred
  • Zoom on trend provides unprecedented ability to view and analyze TrendCapture data, zoom in up to 14 times
  • Selectable AC filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy
  • Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event
  • Large 50000 count, 1/4 VGA display with white backlight, multiple sets of measurement information can be simultaneously displayed at the same time
  • Logging function with expanded memory for unattended monitoring of signals over time, using on-board TrendCapture users can graphically review logged readings without needing a PC store up to 15000 recorded events
  • On board help screens for measurement function
  • Saved measurements allow to name and recall measurements made in the field, optional infrared connector via Fluke IR3000 FC
  • Real time clock for automatic time stamping of saved readings
  • True rms AC voltage and current for accurate measurements on complex signals or non-linear loads, AC bandwidth specified to 100 kHz
  • Relative mode to remove test lead resistance from low Ohms or capacitance measurements, voltage DC, 0.025 %, voltage AC, 0.4 % (true-rms) accuracy
  • DC voltage range - 50 mV, 500 mV, 5 V, 50 V, 500 V, 1000 V with accuracy of +/- 0.025%
  • AC voltage range- 50 mV, 500 mV, 5 V, 50 V, 500 V, 1000 V with accuracy of +/- 0.4 %
  • DC current range - 500uA, 5000 uA, 50 mA, 400 mA, 5 A, 10 A with accuracy of +/- 0.05%
  • AC current range- 500 uA, 5000 uA, 50 mA, 400 mA, 5 A, 10 A with accuracy of +/- 0.6 %
  • Resistance range- 500 Ohm, 5 kOhm, 50 kOhm, 500 kOhm, 5 MOhm, 50 MOhm, 500 MOhm with accuracy of +/- 0.05 %
  • Capacitance range 1 nF, 10 nF, 100 nF, 1 uF, 10 uF, 100uF, 1000 uF, 10 mF, 100 mF with accuracy of 1 %
  • Frequency range 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz with accuracy of +/- 0.005%
  • 100 hrs minimum, 200 hrs in logging mode
  • 50000 count, 1/4 VGA display with white backlight display

Specification

Minimum Order Qty
1
Order Interval
1
Accuracy
0.4 % (True-RMS) AC Voltage
Bandwidth
100 kHz
Battery Type
6 AA Alkaline, NEDA 15A IECLR6
Capacitance
100 mF
Catalog ID
FLKFLUKE-289
Dimensions
2.38 in L x 4.03 in W x 8.75 in H
Display
Dot Matrix
Enclosure Type
Hard Plastic
Resistance
500 MOhm
Temperature Rating
-328 to 2462 deg F
Voltage Rating
1000 VAC/VDC
Standard & Approvals
CE Certified, CSA Certified
Application
For industrial use
Amperage Rating
10 A
Measuring Range
1000 VDC/VAC, 10 A, 500 MOhm
Frequency Rating
999.99 kHz
