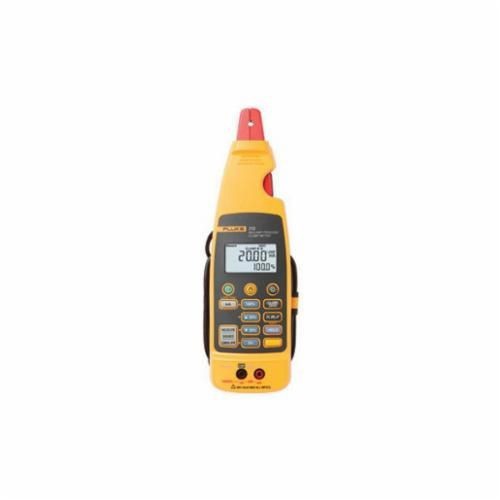

Fluke® FLUKE-772 Milliamp Process Clamp Meter, 0 to 100 mA, Backlit Display

Selected FLUKE-772Fluke® FLUKE-772 Milliamp Process Clamp Meter, 0 to 100 mA, Backlit Display
FLUKE-772Fluke® FLUKE-772 Milliamp Process Clamp Meter, 0 to 100 mA, Backlit Display

Documents

Short Description

Milliamp process clamp meters can measure mA signals without breaking the loop. The Fluke 772 mA Clamp Meter expand upon the capabilities of the popular 771 mA Clamp Meter, adding loop power and mA sourcing to the troubleshooting and process calibration capabilities in all Fluke mA clamp meters.

Features

  • Hard plastic enclosure type
  • Measurement spotlight illuminates hard to see wires in dark enclosures
  • Best in class 0.2 % accuracy
  • Dual backlit display with both mA measurement and percent of 4 to 20 mA span
  • Measure 4 to 20 mA signals without "breaking the loop"
  • Detachable clamp with extension cable for measurements in tight locations
  • Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
  • Automatically change the 4 to 20 mA output for remote testing
  • Power saving features, auto-off, backlight timeout extend battery life
  • Hold function captures and displays changing measurements
  • -25 to 60 deg C storage temperature, IP 40 IP, 0.177 in or 4.5 mm max diameter of measurable conductor, < 90% at < 30 deg C, < 75% at 30 to 55 deg C operating humidity, random 2 g, 5 to 500 Hz vibration,1 meter drop test shock, 0.01% deg C temperature coefficient, (4) AA 1.5 V Alkaline, IEC LR6, 12 hours in mA source into 500 ohms power, battery life
  • Simultaneous mA in-circuit measurement with 24 V loop power for powering and testing transmitters, source 4 mA to 20 mA signals for testing control system I/O or I/Ps, measure 4 mA to 20 mA signals with in-circuit measurement
  • 0 to 20.99 mA at 0.2% + 2 counts accuracy, 21.0mA to 100.0 mA at 1% + 5 counts accuracy measuring range

Specification

Operating Temperature
-10 to 50 deg C
Power Source
(4) AA 1.5 V Alkaline
Series
772
Type
Milliamp Process
Application
For Measuring Output Signals Without Breaking the Loop or Bringing Down the System
Standard & Approvals
CE Certified, FCC Certified, Meets EN61326-1, N10140 Registered
Dimensions
11.61 in L x 5.91 in W x 2.95 in H
AC Response
True-rms
Display
Backlight
Includes
Four AA Alkaline Batteries (Installed), Soft Carrying Case, Tl75 Test Leads, AC 72 Detachable Clip, Tl 940 Mini Hook Test Leads, Instruction Sheet, Hanging Tool With Hook And Loop Strap
