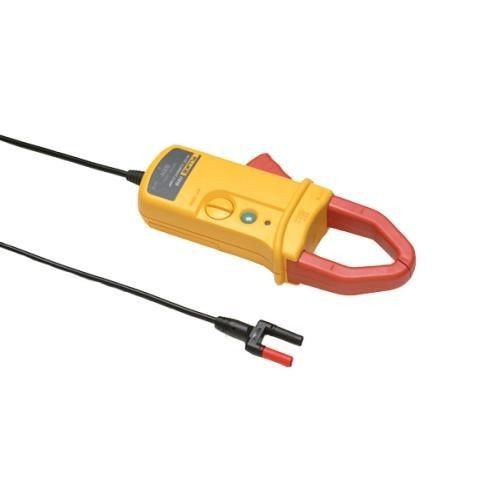

Fluke® I1010 AC/DC Current Clamp, 600/1000 A/600 VAC, 10 kHz

Selected I1010Fluke® I1010 AC/DC Current Clamp, 600/1000 A/600 VAC, 10 kHz
I1010Fluke® I1010 AC/DC Current Clamp, 600/1000 A/600 VAC, 10 kHz

Documents

Short Description

Fluke current clamps extend the current ranges of Fluke tools. The Fluke i1010 AC/DC current clamp is highly reliable, measures 1A to 1000A and provides accurate current reading without breaking the circuit. This clamp measures both ac and dc current with a large jaw, battery-powered Hall-effect probe that gives access to difficult to reach areas. Compatible with most Fluke multimeters.

Features

  • 1 to 600 A AC, 1 to 1000 A DC continuous current
  • 1000 A maximum non-destructive current
  • 0.5 A lowest measurable current
  • DC to 10 kHz useable frequency
  • 1 mV/A output levels
  • 60 hr battery life
  • 30 mm maximum conductor diameter
  • 2 x 25 mm maximum conductor size
  • 1.6 m output cable length

Specification

Minimum Order Qty
1
Order Interval
1
AC Current Accuracy
2% + 0.5 A at 45 to 400 Hz/3 % + 0.5 A at 400 Hz to 2 kHz
Catalog ID
FLKI1010
Dimensions
8.21 in L x 1.87 in W x 3.09 in H
Electrical Rating
600/1000 A/600 VAC
Operating Temperature
14 to 122 deg F
Frequency Rating
10 kHz
Includes
Shrouded Banana Plugs
Standard & Approvals
CAN/CSA C22.2 No 61010-1/No 61010-2-032, CE IEC-61010-1/IEC-61010-02-032
Type
AC/DC
Safety Rating
CAT III 600 VAC
Power Source
9 VDC Alkaline Battery
