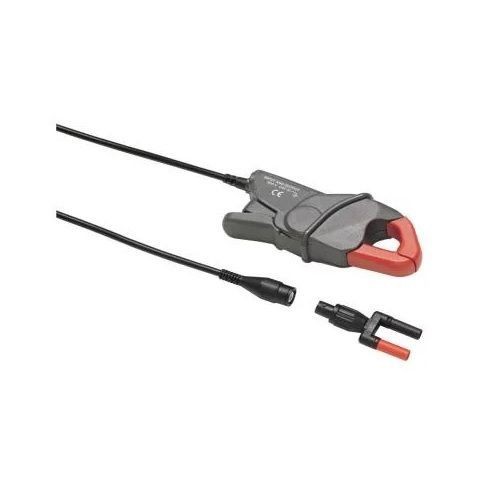

Fluke® I200S AC Small Sized Current Clamp, 20/200 A/600 VAC, 40 Hz to 10 kHz

Selected I200SFluke® I200S AC Small Sized Current Clamp, 20/200 A/600 VAC, 40 Hz to 10 kHz
I200SFluke® I200S AC Small Sized Current Clamp, 20/200 A/600 VAC, 40 Hz to 10 kHz

Documents

Short Description

Fluke Current clamps are the ideal tools to extend the current ranges of Fluke tools. The i200s is a dual range 20A and 200A ac current clamp with voltage output via a safety insulated BNC connector. A dual banana to BNC adapter is supplied to allow the i200s to be connected to multimeters with banana inputs.

Features

  • Companion to your scope meter, power quality meter or digital multimeter to measure up to 200 A AC
  • Adapter for DMM's
  • Take accurate current readings without breaking the circuit
  • 0.1 to 24 A/0.5 to 200 A continuous current
  • 240 A maximum non-destructive current
  • 0.1 A lowest measurable current
  • 100 mV/A/10 mV/A output levels
  • 20 mm maximum conductor diameter
  • 20 x 5 mm maximum conductor size (busbar)
  • 2 m output cable length
  • 0.82 in jaw opening
  • 2.7 in height of open jaws

Specification

Frequency Rating
40 Hz to 10 kHz
Operating Temperature
14 to 131 deg F
Minimum Order Qty
1
Order Interval
1
AC Current Accuracy
1.5% + 0.5 A at 48 to 65 Hz
Catalog ID
FLKI200S
Dimensions
5.3 in L x 2 in W x 1.2 in H
Electrical Rating
20/200 A/600 VAC
Safety Rating
CAT III 600 VAC
Type
AC Small Sized
Standard & Approvals
CE Marked, EN/IEC 61010-1/61010-02-032/50081-1/50082-2, UL 61010B-1/61010B-2- 032
Includes
BNC to Banana Adapter and BNC Adapter
