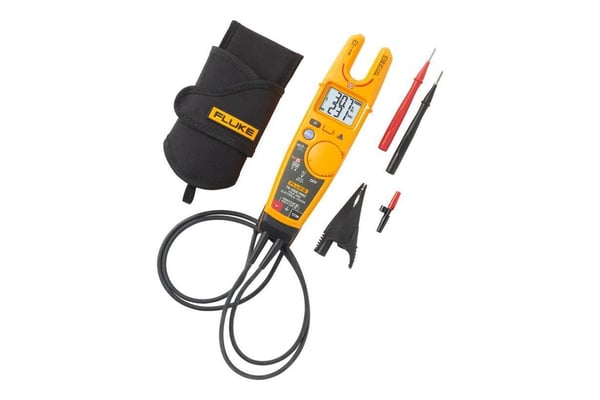

Fluke® T6-1000PRO/AMER Electrical Tester, 1000 VAC/VDC, 200 A, 45 to 66 Hz, 2 to 100 kOhm Insulation

Selected Fluke T6 1000PRO AMER
Fluke T6 1000PRO AMER

Documents

Short Description

The T6-1000 PRO lets you measure AC voltage and current at the same time and display them on the same screen. Making voltage and current measurements has never been so easy or quick. Plus, with Visual Continuity™, you will not only be able to hear a beeper when checking continuity, but the screen will light up showing you that you have continuity. Perfect for noisy, industrial environments.

Features

  • FieldSense™ technology for AC voltage, current and frequency measurement without making electrical contact to live voltage
  • Simultaneous voltage and current display - shows all power supply measurements at a glance for efficient troubleshooting
  • Works with most wire up to 4/0 AWG (0.7 in/17.8 mm jaw opening)
  • HOLD button temporarily freezes the screen for easy viewing
  • Easy to read display with backlight
  • Accepts TPAK magnetic meter hanger (sold separately) for convenient operation
  • Measure voltage to 1000 VAC without test leads

Specification

Voltage Rating
1000 VAC/VDC
Amperage Rating
200 A
Frequency Rating
45 to 66 Hz
Insulation Resistance
2 to 100 kOhm
Power Source
(2) AA IEC LR6
Safety Rating
CAT IV 600 VAC/CAT III 1000 VAC
