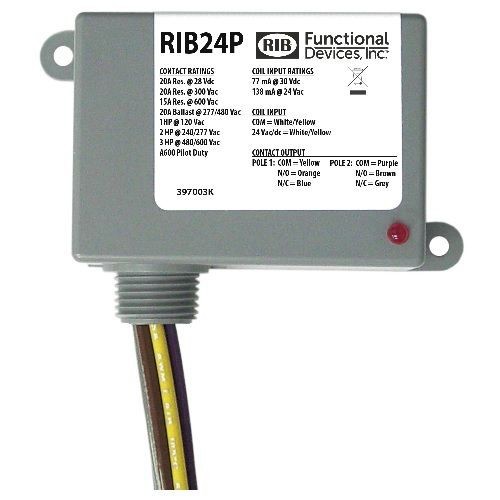

Functional Devices™ RIB® RIB24P Power Control Enclosed Relay With Coil, 20 A, 24 VAC/VDC Coil
Selected Functional Devices™ RIB® RIB24P Power Control Enclosed Relay With Coil, 20 A, 24 VAC/VDC Coil
Functional Devices™ RIB® RIB24P Power Control Enclosed Relay With Coil, 20 A, 24 VAC/VDC Coil
SKU: RIBRIB24P
Manufacturer Part Number: RIB24P
Documents
Features
- One DPDT continuous duty coil contact
- 10 million cycles minimum mechanical expected relay life
- 5 to 95% non-condensing humidity
- 18 ms operate time
- 16 in, 600 VAC rated wires
- 110 mA at 20 VAC/138 mA at 24 VAC/55 mA at 20 VDC/24 VDC/77 mA at 30 VDC coil current
- 3 VAC/3.8 VDC drop out, 20 VAC/VDC pull-in voltage
- 1/2 in NPT nipple
- Gold flash contact
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Power Rating | 3 hp |
| Temperature Rating | -30 to 140 deg F |
| Type | Power Control |
| Standard & Approvals | ARRA Compliant, cULus Listed, UL 916/864/L60947 |
| Amperage Rating | 20 A |
| Dimensions | 2.3 in H x 3.2 in W x 1.8 in D |
| Coil Voltage | 24 VAC/VDC |
| Contact Rating | 20 A at 300 VAC/28 VDC/15 A at 600 VAC |
| Display | LED |
| Enclosure Type | NEMA 1 |
