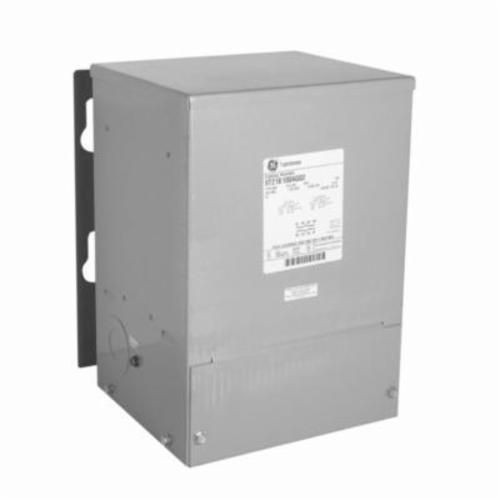

GE Type QMS Dry Type Encapsulated General Purpose Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 10 kVA, 60 Hz

Pick Up Only
Selected 9T21B1006G02GE Type QMS Dry Type Encapsulated General Purpose Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 10 kVA, 60 Hz
9T21B1006G02GE Type QMS Dry Type Encapsulated General Purpose Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 10 kVA, 60 Hz

Documents

Short Description

The complete family of transformers from GE provide quiet, reliable transformer operation. All of the dry type transformers through 1,000 kVA are UL listed under the requirements of Standard 506 and 1561. In addition, each transformer meets the requirements of NEMA ST-20, 1992. Type QB, QMS, and QMS 3 models are C-UL listed. general purpose transformers are rated 600 Volts and below for supplying appliance, lighting, and power loads from electrical distribution systems. Standard distribution voltages are 600, 480, and 240 Volts; standard load voltages are 480, 240, 208, and 120 Volts. The transformer is used to obtain the load voltage from the distribution voltage. Since no vaults are required for installation, these transformers can be located right at the load to provide the correct voltage for the application. This eliminates the need for long, costly, low voltage feeders.

Features

  • Core and coils are contained within a NEMA 3R nonventilated weatherproof enclosure
  • Type QB and QMS units feature encapsulated core and coils
  • No taps
  • K1 Kfactor
  • Knockouts provided on back and bottom
  • High grade silicon steel core
  • Mounting holes on side for easy access
  • Wiring compartment includes ground stud

Specification

Frequency Rating
60 Hz
Housing Material
Steel
Mounting Type
Wall
Minimum Order Qty
1
Order Interval
1
Enclosure Type
NEMA 3R
Phase
1
Secondary Voltage
120/240 VAC
Type
Dry Type Encapsulated
Temperature Rating
40 deg C
Series
Type QMS
Primary Voltage
240/480 VAC
Power Rating
10 kVA
Dimensions
17.1 in H x 12.5 in W x 12.5 in D
Connection Type
Lugs/Bolt-Down Terminal
Circuit Type
19400 Frame
Catalog ID
G-E9T21B1006G02
Insulation
IS-12
Standard & Approvals
UL, cUL Listed
Application
Indoor and Outdoor
