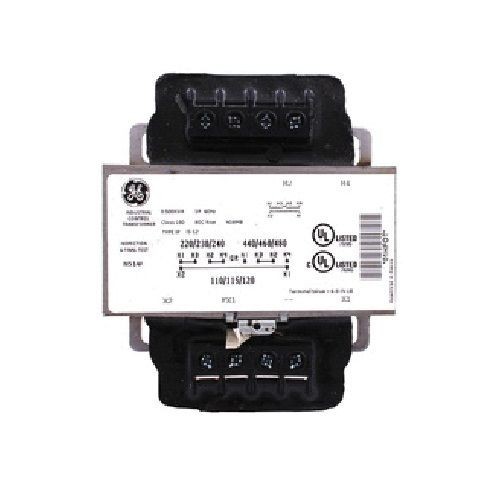

GE 9T58K0051 Core/Coil Dry Fully Encapsulated Power Transformer, 240/480 VAC Primary, 115 VAC Secondary, 0.75 kVA Power Rating, 60 Hz, 1 ph Phase

Selected GE 9T58K0051 Core/Coil Dry Fully Encapsulated Power Transformer, 240/480 VAC Primary, 115 VAC Secondary, 0.75 kVA Power Rating, 60 Hz, 1 ph Phase
GE 9T58K0051 Core/Coil Dry Fully Encapsulated Power Transformer, 240/480 VAC Primary, 115 VAC Secondary, 0.75 kVA Power Rating, 60 Hz, 1 ph Phase

Documents

Short Description

Type IP transformers are core and coil units designed for machine tool, industrial control, panel board and general-purpose applications. These designs are now welded core and encapsulated to provide the highest quality electrical performance. The transformer coil is completely surrounded by epoxy, making the unit impervious to external elements. The lamination core is welded to provide superior quiet performance.

Features

  • Fully encapsulated coil is impervious to moisture
  • Pressure plate terminals ensure secure connections
  • Terminal board is anchored in the epoxy for greater reliability
  • Wide variety of fusing options
  • Rugged, high impact plastic terminal board
  • Full head No 8 brass screws assure quick, easy terminations with maximum connection integrity
  • Copper windings
  • Flexible design allows input or output voltage to match any application
  • Available fuse clips offer simple, low cost fusing with terminal block models and minimum space are important
  • Copper coil
  • 80 deg C temperature rise
  • 180 deg C temperature class
  • K1 K factor
  • Terminal board connection
  • 220x440/230x460/240x480 VAC primary voltage

Specification

Frequency Rating
60 Hz
Insulation
IS-12
Minimum Order Qty
1
Order Interval
1
Catalog ID
G-E9T58K0051
Circuit Type
12225 Frame
Dimensions
5.31 in W x 4.56 in H
Enclosure Type
Open
Phase
1
Power Rating
0.75 kVA
Primary Voltage
240/480 VAC
Secondary Voltage
110/115/120 VAC
Series
9T58K
Temperature Rating
40 deg C
Type
Core/Coil
Application
For machine tools are used to provide voltage to control devices in applications where regulation and minimum space are important
Standard & Approvals
cUL 5085, E2739, CSA 3272
