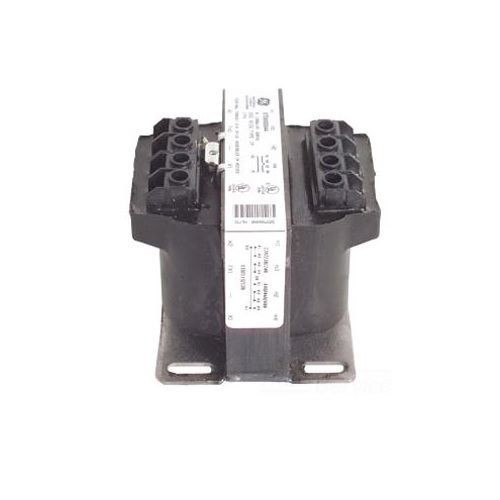

GE 9T58K0064 Dry Fully Encapsulated Open Core and Coil General Purpose Transformer, 230/460/575 VAC Primary, 115/95 VAC Secondary, 0.1 kVA Power Rating, 50 Hz, 1 ph Phase
GE 9T58K0064 Dry Fully Encapsulated Open Core and Coil General Purpose Transformer, 230/460/575 VAC Primary, 115/95 VAC Secondary, 0.1 kVA Power Rating, 50 Hz, 1 ph Phase
SKU: G-E9T58K0064
Manufacturer Part Number: 9T58K0064
UPC: 783173120934
Documents
Features
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminals ensure secure connections
- Terminal board is anchored in the epoxy for greater reliability
- Rugged, high-impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Copper windings coil material
- Flexible design allows input or output voltage to match any application
- K1 Kfactor
- Screw terminals
- Standard sound
- 55 deg C rise temperature
Specification
| Frequency Rating | 50 Hz |
|---|---|
| Housing Material | High Impact Plastic |
| Insulation | Class A |
| Mounting Type | Panel |
| Phase | 1 |
| Power Rating | 0.1 kVA |
| Primary Voltage | 230/460/575 VAC |
| Secondary Voltage | 115/95 VAC |
| Series | IP |
| Temperature Rating | 40 deg C |
| Type | Dry Type Encapsulated Open Core and Coil |
| Application | Machine Tool Applications |
| Standard & Approvals | cUL/UL Listed, GSA Compliant |
| Circuit Type | 8150 Frame |
| Dimensions | 3.81 in W x 3.28 in H |
