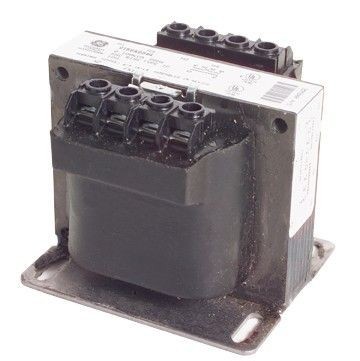

GE 9T58K2808G48 Type QB Dry Encapsulated Small Power Industrial Solution Core and Coil Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 0.3 kVA Power Rating, 60 Hz, 1 ph Phase
GE 9T58K2808G48 Type QB Dry Encapsulated Small Power Industrial Solution Core and Coil Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 0.3 kVA Power Rating, 60 Hz, 1 ph Phase
SKU: G-E9T58K2808G48
Manufacturer Part Number: 9T58K2808G48
UPC: 783173132241
Documents
Features
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminals ensure secure connections
- Terminal board is anchored in the epoxy for greater reliability
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Copper windings
- Flexible design allows input or output voltage to match any application
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Insulation | IS-12 |
| Phase | 1 |
| Power Rating | 0.3 kVA |
| Primary Voltage | 240x480 V |
| Secondary Voltage | 120/240 V |
| Series | 9T |
| Temperature Rating | 100 deg C |
| Type | Type QB Dry Encapsulated Small Power |
| Application | Electrical Distribution and Control Applications |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL Listed, cUL Listed, CE Certified, UL 5085, File No. E2739, CSA C22.2 No. 66, File No. 3272 |
| Dimensions | 3.81 in W x 3.28 in H |
| Connection Type | Pressure Plate/Terminal Board |
| Enclosure Type | NEMA 3R |
