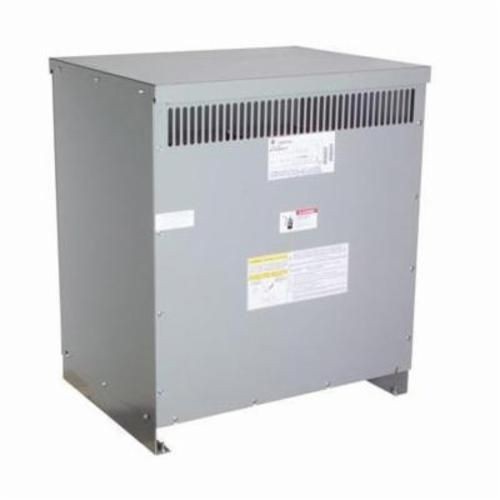

GE 9T83B3873 Type QL Dry Type Vented General Purpose Transformer, 480 VAC Primary, 208Y/120 VAC Secondary, 45 kVA Power Rating, 60 Hz, 3 Phase

Pick Up Only
Selected 9T83B3872GE 9T83B3873 Type QL Dry Type Vented General Purpose Transformer, 480 VAC Primary, 208Y/120 VAC Secondary, 45 kVA Power Rating, 60 Hz, 3 Phase
9T83B3872GE 9T83B3873 Type QL Dry Type Vented General Purpose Transformer, 480 VAC Primary, 208Y/120 VAC Secondary, 45 kVA Power Rating, 60 Hz, 3 Phase

Documents

Short Description

Units are enclosed in a NEMA 2 drip proof metal enclosure with natural-draft ventilation. Core-and-coil assembly is mounted on rubber isolation pads to reduce noise. Weather shield kits are available for conversion to a NEMA 3R enclosure suitable for outdoor service. NEMA 3R stainless steel (Type 316) enclosure is available up to 150kVA. To specify a stainless steel enclosure, substitute an “S” in the fifth character in the GE product number. Example: 9T83B3874 changes to 9T83S3874. All QL model product numbers begin with 9T6, 9T7, 9T8, or 9T9.

Features

  • Quiet performance
  • No-weld design - an industry first
  • (2) +2.5% and (4) -2.5% Taps
  • K1 Kfactor
  • Comprehensive factory testing assures quality
  • Easy, fast installation saves time
  • Clear, comprehensive documentation and labeling enhance safety
  • Unique core and coil design makes QL transformers among the quietest available
  • Core and coil assemblies are mounted on rubber isolation pads to reduce noise
  • Bolted coil terminations are more reliable than welded terminations, and they eliminate weld failures and problems associated with welding and weld splatter
  • Single-piece front/back is easily removable for service
  • Accessible mounting flanges with front/back slotted mounting holes make installation easier
  • 100% factory tested for shorts and coil integrity, current and loss, voltage, impedance and noise
  • NEMA 2 powder coat drip proof enclosure is standard
  • Copper or aluminum windings
  • Copper ground strap
  • Robust packaging with top and side protection protects against shipping damage

Specification

Frequency Rating
60 Hz
Housing Material
Steel
Mounting Type
Floor
Number of Taps
6
Phase
3
Primary Voltage
480 VAC
Secondary Voltage
208Y/120 VAC
Temperature Rating
40 deg C
Type
Dry Type
Standard & Approvals
UL, cUL Listed
Connection Type
Lugs/Bolt-Down Terminal
Enclosure Type
NEMA 2
Circuit Type
Y373A Frame
Dimensions
32-1/2 in H x 23-1/2 in W x 18-1/2 in D
Application
Commercial, Industrial, Motors, Incandescent Lighting, Resistance Heating and Motor Generators
Series
Type QL
Power Rating
45 kVA
Insulation
IS-19C
