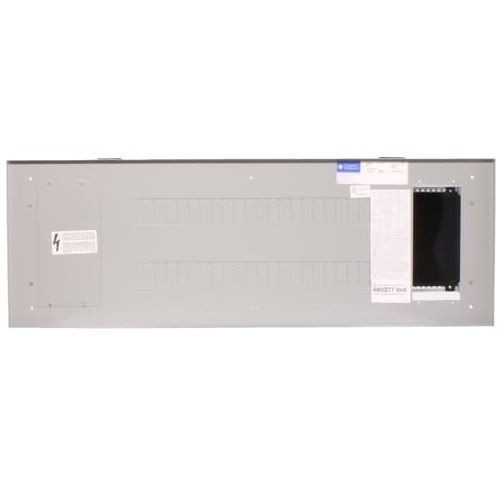

GE AEU3424RCXAXT1B4 Pro-Stock™ A-Series™ II Unassembled Lighting Panelboard, 3 Poles, 480/277 VAC, 400 A
GE AEU3424RCXAXT1B4 Pro-Stock™ A-Series™ II Unassembled Lighting Panelboard, 3 Poles, 480/277 VAC, 400 A
SKU: G-EAEU3424RCXAXT1B4
Manufacturer Part Number: AEU3424RCXAXT1B4
UPC: 783175120321
Documents
Features
- Maximum system voltage is upto 480 VAC for AE panelboard line
- Field installable kits allow you to shift gears on the fly
- Standard Pro-Stock™ panels have the capability of adding sub-feed breakers or feed-thru lugs in the field
- All panel are convertible between main lugs or main breakers
- Reversible interior and no need to specify top or bottom feed
- Solid-state Spectra™ RMS or thermal magnetic breakers available as mains or sub-feeds
- Flush or surface mounted trims with door within door and front hinge to box options available
- Extruded split neutrals speed and simplify wiring
- Modular kits allow for field installation of 200% neutrals and service entrance bonding straps
- Field installable TVSS (transient voltage surge suppression) kits, 200 kA per phase
- Up to six poles of sub-feed available in 400 A and 600 A, and up to 3 poles of sub-feed available in 225 A
- Feed through, AEU interior type
- 76in H box/front
- 32 GO schedule
Specification
| Mounting Type | Bolt-On |
|---|---|
| Number of Circuits | 42 |
| Number Of Poles | 3 |
| Series | A-Series™ II |
| Type | UnAssembled |
| Voltage Rating | 480/277 VAC |
| Standard & Approvals | CSA Certified, California Building Code Seismic Zone 4, Federal Specifications W-P-115c, International Building Code Seismic Zone 3 & 4, NEC Article 384, UL67, UL50, UL943 |
| Amperage Rating | 400 A |
| Dimensions | 73-1/2 in L x 17 in W x 6-1/2 in H |
| Breaker Type | Main |
| Bus Material | Copper |
| Enclosure Type | NEMA 1, 3R, 12 |
| Feed Type | Feed Thru |
