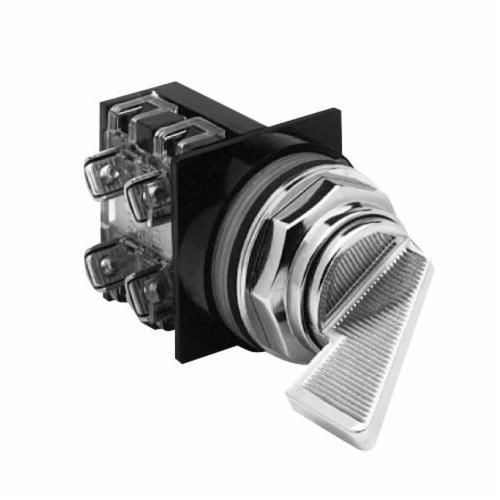

GE CR104PSM34 CR104P Heavy Duty Oiltight/Watertight Non-Illuminated Selector Switch, 30.5 mm, Lever Operator

Selected CR104PSM94GE CR104PSM34 CR104P Heavy Duty Oiltight/Watertight Non-Illuminated Selector Switch, 30.5 mm, Lever Operator
CR104PSM94GE CR104PSM34 CR104P Heavy Duty Oiltight/Watertight Non-Illuminated Selector Switch, 30.5 mm, Lever Operator

Documents

Short Description

The GE push button offering includes a complete line of pilot devices and stations for industrial and commercial applications. They are available in 30 and 22 mm sizes. The CR104P (30mm) line heavy duty oil tight and watertight line is complete with a variety of accessories and enclosures.

Features

  • Greater torque due to right sided ring design, greater torque can be applied during assembly and installation to provide oil-tightness
  • Ease of assembly, one-screw contact block mounting
  • Multiple industrial environments in all units (except PTP) are suitable for use in NEMA 1/3/3R/4/4x/12/13 applications keeps installation foolproof
  • Chrome color, brass key, unfilled polyacetal cam, nylon contact block housing
  • For some NEMA 4X applications, protective caps will improve corrosion resistance

Specification

Material
Nylon
Operator Type
Lever
Minimum Order Qty
1
Order Interval
1
Contact Rating
10 A at 600 VAC/VDC
Enclosure Type
NEMA 1/3/3R/4/4X/12/13
Size
30.5 mm
Type
Heavy Duty Oiltight Watertight
Number of Positions
3
Series
CR104P
Contact Mode
Maintained
Catalog ID
G-ECR104PSM34
Cam Code
4
Bezel/Housing
Chrome Plated Zinc Ingot
