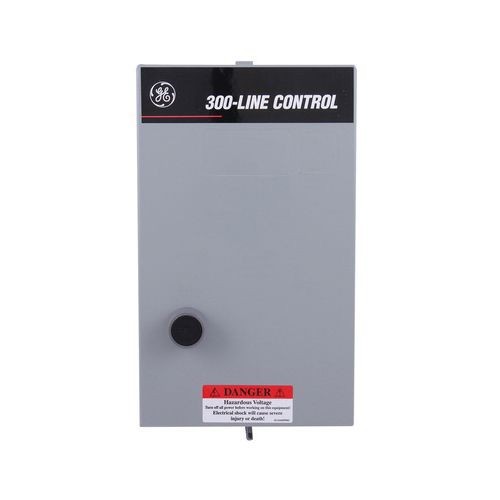

GE CR306C103 300 Line Full Voltage Non-Combination Non-Reversing NEMA Magnetic Starter, 230 to 240 VAC V Coil, 3 Poles, NEMA 1 Enclosure
GE CR306C103 300 Line Full Voltage Non-Combination Non-Reversing NEMA Magnetic Starter, 230 to 240 VAC V Coil, 3 Poles, NEMA 1 Enclosure
SKU: G-ECR306C103
Manufacturer Part Number: CR306C103
UPC: 783166357095
Documents
Features
- Has an encapsulated coil and a thermal overload relay to protect against overloads in all phases
- Toolless contactor disassembly allows quick access for inspection and maintenance
- Current carrying contact tips are weld-resistant silver cadmium oxide
- Class 20 overload protection
- Visual trip indicator with manual reset to avoid surprise restarts
- Manual weld check provides a convenient test against welding of overload relay contacts
- 2:1 adjustable full load amps with tactile feedback Dial
- Built-in thermal memory to prevent hot motor restarts
- Protection against complete phase current loss
- +/- 2% accuracy, +/- 2% repeatability, self-powered at 50% of minimum current range
- Saddle clamp terminal accommodate ring, spade and stripped wire leads and carry permanent stamped in identification
- 230 to 240 VAC at 60 Hz and 220 VAC at 50 Hz coil voltage
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Number Of Poles | 3 |
| Operating Temperature | -20 to 70 deg C |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | G-ECR306C103 |
| Connection Type | Saddle Clamp |
| Dimensions | 12-3/4 in L x 7 in W x 6-3/4 in H |
| Enclosure Type | NEMA 1 |
| Overload Relay | Thermal |
| Phase | 3 |
| Voltage Rating | 600 VAC |
| Application | For motor control centers, custom-type control panels and switchgear equipment |
| Standard & Approvals | UL Listed, CSA Certified |
| Type | Full Voltage |
| Series | 300-Line |
| Reset Type | Manual/Remote |
| Coil Voltage | 230 to 240 VAC |
| Amperage Rating | 27 A |
| Action | Non-Reversing Non-Combination |
| Motor Power | 7-1/2 hp |
| Includes | Holding Interlock, Pressure Terminals, 3-Leg Block Type Overload Relay (Manual Reset) |
