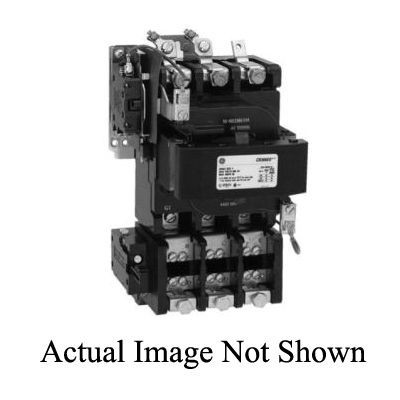

GE CR306H102 CR306/300-Line Full Voltage Magnetic Non-Combination Non-Reversing NEMA Starter, 115 to 120 VAC V Coil, 3 Poles, NEMA 1 Enclosure
GE CR306H102 CR306/300-Line Full Voltage Magnetic Non-Combination Non-Reversing NEMA Starter, 115 to 120 VAC V Coil, 3 Poles, NEMA 1 Enclosure
SKU: G-ECR306H102
Manufacturer Part Number: CR306H102
UPC: 783166362969
Short Description
Features
- Toolless contactor disassembly (sizes 00 to 4) - allows quick access for inspection and maintenance
- Just release 2 retainers and pull a clip to get at magnet, coil and contacts
- Saddle clamp terminals (sizes 00 to 1) - accommodate ring, spade and stripped wire leads and carry permanent stamped in identification
- Staggered arrangement makes wiring easier and helps prevent shorting between phases
- Current carrying components - contact tips are weld resistant silver cadmium oxide (fine silver on sizes 00 and 0 only)
- Contacts are installed in a wedge configuration for positive make with minimum bounce
- Class 20 overload protection
- Visual trip indicator with manual reset - to avoid surprise restarts
- Reset occurs on arm upstroke so a tripped condition can't be overridden by holding the arm down
- Manual weld check - provides a convenient test against welding of overload relay contacts
- Just depress the weld check operator to trip the relay, run a simple continuity test across the relay contacts, then depress the manual reset to return the starter to service
- Dual bimetals - anticipate overloads, responding to rising current and temperature with faster tripping on severe overloads for better motor protection
- Trip points are factory calibrated for accuracy
- +/-10% trip adjustment - by turning a dial in the overload relay face allows "tuning" the protection to the motor on the spot
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Motor Power | 1/3 hp |
| Number Of Poles | 3 |
| Operating Cycles | 20000000 Cycles |
| Operating Temperature | -25 to 40 deg C |
| Overload Relay | 3-Leg Block/Thermal |
| Reset Type | Manual |
| Series | CR306/300-Line |
| Type | Full Voltage Magnetic Non-Combination Non-Reversing |
| Voltage Rating | 600 VAC |
| Application | Motor Control Center, Custom Type Control Panel, Switchgear Equipment, Electrical Distribution and Control Applications |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant |
| Dimensions | 10 in H x 6 in W x 4.63 in D |
| Auxiliary Contact Rating | 3NO |
| Coil Voltage | 115 to 120 V |
| Connection Type | Saddle Clamp |
| Enclosure Type | NEMA 1 |
| Includes | Holding Interlock |
| Amperage Rating | 9 A |
