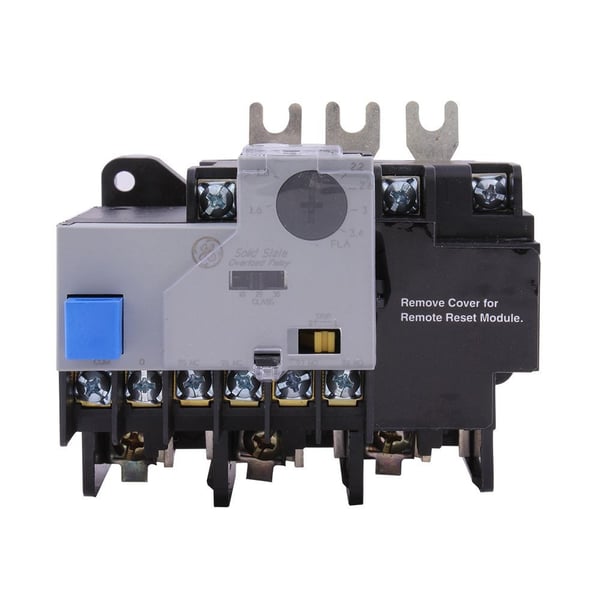

GE CR324CXES CR324X Solid-State Overload Relay, 1.6 to 3.4 A, 600 VAC Coil
GE CR324CXES CR324X Solid-State Overload Relay, 1.6 to 3.4 A, 600 VAC Coil
SKU: G-ECR324CXES
Manufacturer Part Number: CR324CXES
UPC: 783166577189
Documents
Features
- 2:1 adjustable full load amps with tactile feedback dial
- Selectable 10/20/30 protection class
- Built-in thermal memory to prevent hot motor restarts
- Protection against complete phase current loss
- +/-2% accuracy
- +/-2% repeatability
- Self-powered at 50% of minimum current range
- Unbalance trip signal for PLC operation
- Manual trip
- Visual trip indication
- Built-in line/load straps
- Fits with existing 300 line starters
- Power factor correction terminals
- 15 A breaker maximum, 12 A fuse maximum
- For MRO and replacement
- 27 A (continuous), 1.6 to 3.4 A (full load)
- For NEMA rated full voltage magnetic starter
Specification
| Mounting Type | Panel |
|---|---|
| Number Of Poles | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 1.6 to 3.4 A |
| Catalog ID | G-ECR324CXES |
| Enclosure Type | NEMA 1 |
| Series | CR324X |
| Temperature Rating | -20 to 70 deg C |
| Type | Solid State |
| Application | Electrical Distribution and Control Applications |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant |
| Dimensions | 4.11 in L x 3.7 in W x 3.6 in H |
| Coil Voltage | 600 V |
