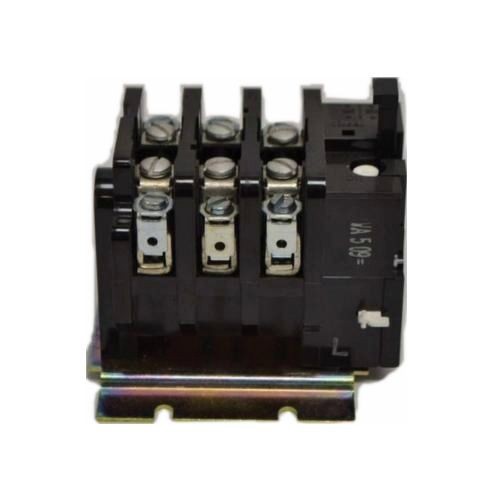

GE CR324D310F Block Overload Relay, 1NC Contact, 600 VAC, 250 VDC V Coil

Selected CR324D310FGE CR324D310F Block Overload Relay, 1NC Contact, 600 VAC, 250 VDC V Coil
CR324D310FGE CR324D310F Block Overload Relay, 1NC Contact, 600 VAC, 250 VDC V Coil

Documents

Features

  • Flexibility of operation, trip rating can be easily changed by replacing the front accessible heaters
  • Dual bimetal current monitoring strip anticipates the rate of temperature rise in the motor winding, effectively reduces trip time in locked rotor conditions
  • It prevents dangerous temperature overshoot in the motor windings
  • The panel-mount block overload relay provides overload protection for motors having full-load currents up to 135 A
  • The relays are furnished complete for use on control panels
  • Ambient compensated
  • Manual reset

Specification

Mounting Type
Panel
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Catalog ID
G-ECR324D310F
Coil Voltage
600 VAC/250 VDC
Contact Form
1NC
Contact Rating
10 A at 575 VAC/250 VDC
Enclosure Type
NEMA 2
Series
CR324
Type
Block
Application
For 300 line NEMA rated full voltage magnetic starter
Includes
Heater
