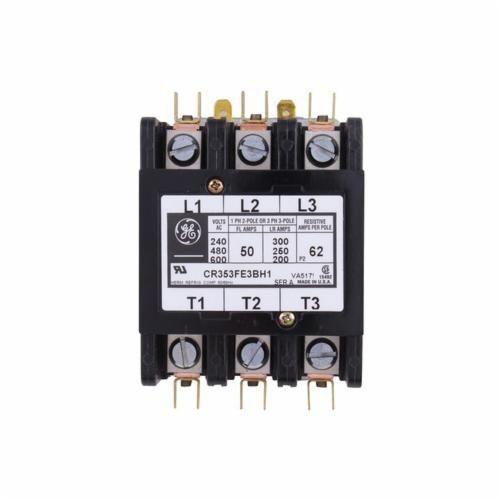

GE CR353FE3BH1 3-Phase Non-Reversing Standard Definite Purpose Contactor, 24 VAC V Coil, 300 A, 3 Poles

Selected CR353FE3BH1GE CR353FE3BH1 3-Phase Non-Reversing Standard Definite Purpose Contactor, 24 VAC V Coil, 300 A, 3 Poles
CR353FE3BH1GE CR353FE3BH1 3-Phase Non-Reversing Standard Definite Purpose Contactor, 24 VAC V Coil, 300 A, 3 Poles

Documents

Short Description

GE introduces entirely new definite purpose control designs that give OEMs and users new advantages. These new designs cover both the new GE 20 to 40 A, compact 1 and 2-poles contactors and the new, feature rich 25 to 40 A, 3-poles DP contactors. They are rated to 6X/5X/4X locked rotor currents at 240/480/600 VAC. They produce greater flexibility in engineering and open up new applications. And they reflect the quality materials and workmanship that result in greater reliability and longer life. These new products enhance GE's complete DP offering, which ranges from 1 to 5-poles and from 20 to 150 A.

Features

  • Universal mounting plates and DIN-rail options make change outs simple
  • Choice of terminal configurations allows diverse applications
  • Low VA no burn coil for fail-safe operation during brownouts
  • Snap-on accessories make modifications quick and easy
  • Silver alloy contacts deliver reliability and long life
  • 2-speeds controllers incorporate a compact, integrated interlock
  • 3-phases
  • 50 A inductive
  • 62 A resistive
  • Open enclosure type

Specification

Frequency Rating
50/60 Hz
Maximum Load Current
300 A
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Catalog ID
G-ECR353FE3BH1
Coil Voltage
24 VDC
Dimensions
3.75 in H x 2.74 in W x 3.58 in D
Enclosure Type
Open
Series
CR353
Terminal
Box Lug
Type
Non-Reversing Standard
Application
For electrical distribution and control
