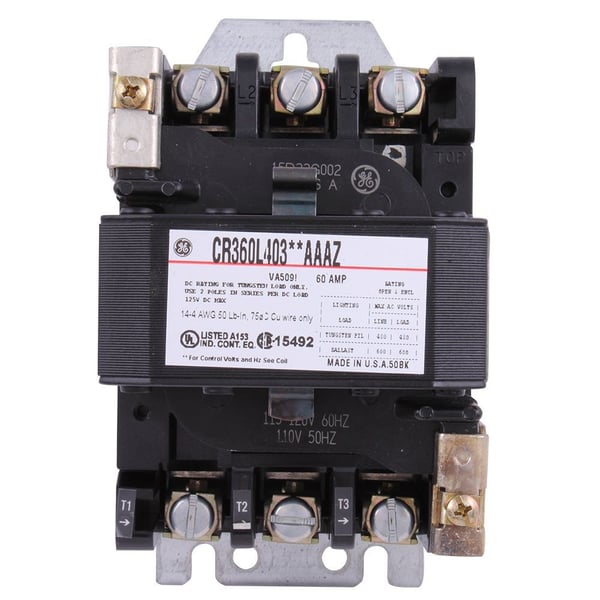

GE CR360L40302AAAZ Electrically Held Lighting Contactor, 120 VAC V Coil, 60 A, 3NO Contact, 3 Poles

Selected GE CR360L40302AAAZ Electrically Held Lighting Contactor, 120 VAC V Coil, 60 A, 3NO Contact, 3 Poles
GE CR360L40302AAAZ Electrically Held Lighting Contactor, 120 VAC V Coil, 60 A, 3NO Contact, 3 Poles

Documents

Short Description

GE CR360L Series lighting contactors are electrically held and offer solutions for applications between 30 and 300 A. This is accomplished in five frame sizes, all built on the successful and long established NEMA starters. The ratings are established for fluorescent, mercury arc, tungsten and sodium lamp loads, covering a wide spectrum of industrial and commercial applications. The CR360L contactors offer a wide range of features that include NEMA Type 1, Type 12, Type 3R and Type 4 stainless steel enclosures. A full selection of pilot devices, including push buttons, selector switches and multi-colored indicating lights wired in needed configurations. Main contactors with 2, 3 and 4 power poles. Generous offering of auxiliary contacts. Complete list of renewal parts for field installation. Stock or quick delivery on the majority of products. UL listing and CSA certification. Coils will be connected line-to-line unless otherwise specified.

Features

  • Full selection of pilot devices, including pushbuttons, selector switches and multi-colored indicating lights wired in needed configurations
  • Generous offering of auxiliary contacts
  • Complete list of renewal parts for field installation
  • Coils will be connected line-to-line

Specification

Frequency Rating
50/60 Hz
Maximum Load Current
60 A
Number Of Poles
3
Series
CR360L
Type
Electrically Held
Application
Electrical Distribution and Control Applications
Standard & Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, CSA Certified, UL Listed
Dimensions
6.63 in H x 3.75 in W x 5.38 in D
Coil Voltage
120 V
Contact Configuration
3NO
Contact Rating
600 V
Contact Type
Auxiliary
Enclosure Type
Open
