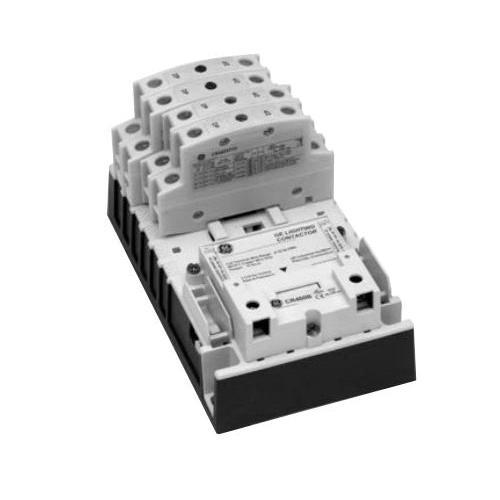

GE CR463L44ASA CR460 Series Electrically Held Standard Control Lighting Contactor, 220/230 to 240 VAC Coil, 30 A, 4NO-4NC, 8 Poles
GE CR463L44ASA CR460 Series Electrically Held Standard Control Lighting Contactor, 220/230 to 240 VAC Coil, 30 A, 4NO-4NC, 8 Poles
SKU: G-E463L44ASA
Manufacturer Part Number: CR463L44ASA
UPC: 783166626092
Short Description
Features
- Without additional auxiliary contact, control circuit fuse
- Standard assembled forms
- Modular design permits fast, on-site configuration
- Snap-in auxiliary contacts
- Continuously rated, interchangeable coils
- Contact position indication when button protrudes, contact is closed
- Convenient side access field power wiring
- Contact configuration indicator
- Standard base for all pole configurations
- Robust pole terminals accept up to two #8 AWG wires
- Manual operator, fast, sure 3-point mounting
- Enclosed contacts resist contaminants for greater reliability
- Combination slotted/#2 Phillips® screws
- Common, easily installed power poles change from NO to NC (or vice versa) simply by unlatching and rotating 180 deg
- Power poles rated for the range of tasks 30 A rated contacts, 15 A motor rated, A600 pilot duty rated
- Easy to read rating label
- Auxiliary contacts, rated A600 are suitable for use on low level circuits down to 12 VAC, 5 mA
- 220 VAC at 50 Hz, 230 to 240 VAC at 60 Hz coil voltage
Specification
| Series | CR460 Series |
|---|---|
| Terminal Type | Finger Safe |
| Type | Electrically Held Standard Control |
| Application | For switch ballast (fluorescent or HID), tungsten, general use load, carry motor load, resistive, pilot duty rating, electrical distribution and control applications |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 508 File No. E1811, cUL Listed, CE Certified |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | G-E463L44ASA |
| Coil Voltage | 220/230 to 240 VAC |
| Contact Configuration | 4NO-4NC |
| Contact Rating | A600, 10 A at 600 VAC |
| Contact Type | Auxiliary |
| Dimensions | 7.39 in H x 3.86 in W x 4.18 in D |
| Enclosure Type | Open |
| Frequency Rating | 50/60 Hz |
| Maximum Load Current | 30 A |
| Number of Auxiliary Contacts | 8 |
| Number Of Poles | 8 |
| Operating Temperature | -25 to 40 deg C |
