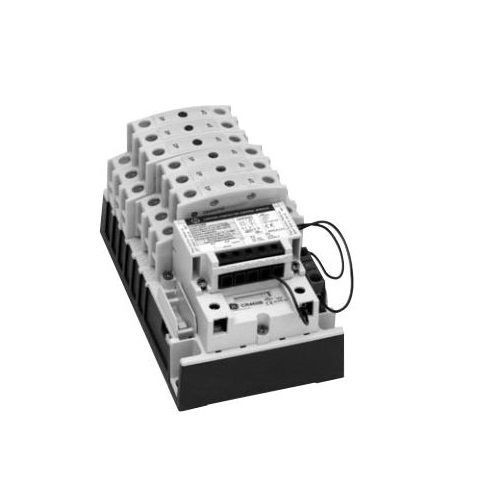

GE CR463M30NJA10A0 Mechanically Held Lighting Contactor, 110/120 VAC V Coil, 30 A, 3NO Contact, 3 Poles

Selected GE CR463M30NJA10A0 Mechanically Held Lighting Contactor, 110/120 VAC V Coil, 30 A, 3NO Contact, 3 Poles
GE CR463M30NJA10A0 Mechanically Held Lighting Contactor, 110/120 VAC V Coil, 30 A, 3NO Contact, 3 Poles

Documents

Short Description

A mechanical latch with a 2- or 3-wire electronic control module delivers reliable performance and protection from such application abnormalities as line noise, leakage currents from controller outputs or short repetitive commands burst from faulty controllers.

Features

  • Latches after contactor command and removes coil from circuit for noise free operation
  • Eliminates all coil losses after contactor is latched
  • Coil operation and control circuit at same or different voltages
  • Control module allows longer control wiring runs
  • Microprocessor validates control signal before operation will not respond to momentary voltage spikes or noise, operation command has built-in delay (0.4 sec) to avoid multiple short term commands that can cause contact fatigue or failure
  • 3-wire control is the choice for use with momentary devices allowing operation from multiple locations
  • A momentary pulse of energy operates contactor, a second pulse on alternate leg returns contactor to original state

Specification

Frequency Rating
60 Hz
Maximum Load Current
30 A
Mounting Type
Surface
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Catalog ID
G-E463M30NJA10A0
Coil Voltage
110/120 VAC
Contact Configuration
3NO
Enclosure Type
NEMA 1
Series
CR463M
Type
Mechanically Held
