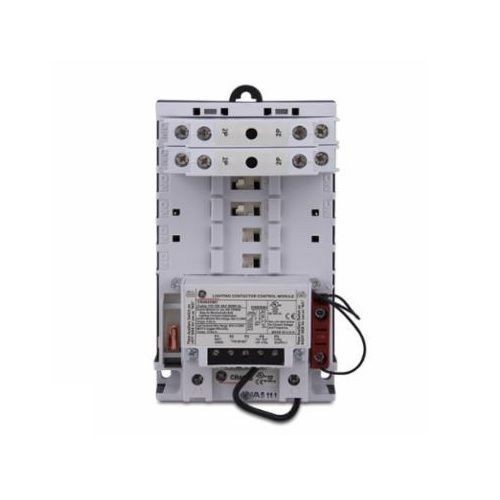

GE CR463M40CJA CR463M Mechanically Held Contactor, 110/120 VAC Coil, 30 A, 4NO, 4 Poles

Selected GE CR463M40CJA CR463M Mechanically Held Contactor, 110/120 VAC Coil, 30 A, 4NO, 4 Poles
GE CR463M40CJA CR463M Mechanically Held Contactor, 110/120 VAC Coil, 30 A, 4NO, 4 Poles

Short Description

CR463M mechanically held contactors. Standard assembled forms. Modular design permits fast, on-site configuration. 2-12 power poles. 30 A rating. Snap-in auxiliary contacts. Common components for both electrically and mechanically held versions. Continuously rated, interchangeable coils. Finger-safe terminals. Two-or-three-wire control module: low input VA permits long wire runs. Verifies contact status and has built-in delays that minimize excessively frequent signals from faulty controllers. Comes in a wide range of input voltages. Four modules cover input voltages from 24 to 277 VAC and 12 to 24 VDC. All modules may be used with coil voltage from 24 to 277 VAC. Clear labeling shows control module rating, wire size and torque. Field configurable from standard electrically held contactor with simple, easy-to-install kits of control modules, latch mechanisms and auxiliary contacts.

Features

  • 2-wire control

Specification

Frequency Rating
50/60 Hz
Number Of Poles
4
Dimensions
8 in L x 7 in W x 6 in H
Coil Voltage
110/120 VAC
Contact Configuration
4NO
Enclosure Type
Open
Series
CR463M
Maximum Load Current
30 A
