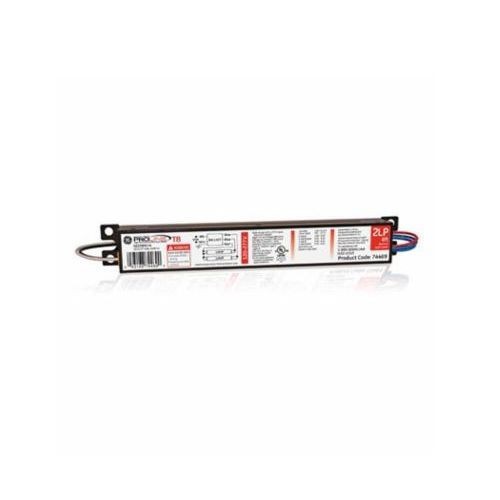

GE UltraMax™ GE259MAX-G-N G Series Linear Multi-Volt Electronic Fluorescent Ballast, F96T8 Fluorescent Lamp, 59 W Lamp, 120 to 277 VAC, Instant, 0.87 Ballast Factor
GE UltraMax™ GE259MAX-G-N G Series Linear Multi-Volt Electronic Fluorescent Ballast, F96T8 Fluorescent Lamp, 59 W Lamp, 120 to 277 VAC, Instant, 0.87 Ballast Factor
SKU: GELGE259MAX-G-N
Manufacturer Part Number: GE259MAX-G-N
UPC: 043168744690
Documents
Features
- High performance electronic ballast for all general fluorescent applications
- Multi-voltage technology handles voltage from 120 to 277 VAC
- Light weight, low profile housing
- Parallel lamp operation means system maintenance is easier to manage
- 0.93/0.55 A 111/67 W at 120 VAC, 0.39/0.24 A 106/66 W at 277 VAC amperage rating
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Lamp Type | F96T8 Fluorescent |
| Lamp Wattage | 59 W |
| Minimum Starting Temperature | 0 deg F |
| Series | G Series |
| Start Type | Instant |
| Total Harmonic Distortion | <10% |
| Voltage Rating | 120 to 277 VAC |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, cUL Listed, UL Listed, UL Class P, UL Type 1 Outdoor, UL Type HL, FCC Class A |
| Dimensions | 9.5 in L x 1.3 in W x 1.18 in H |
| Ballast Factor | 0.87 |
| Ballast Grade | Normal |
| Dimmable | No |
| Number of Lamps | 1/2/2025 12:00:00 AM |
| Application | For 46 to 59 W, 4 to 8 ft slimline lamps |
| Wattage | 66/67/106/111 W |
| Type | Linear Multi-Volt |
| Temperature Range | -22 to 104 deg F |
| Power Factor | >0.98 |
| Amperage Rating | 0.39/0.24/0.55/0.93 A |
