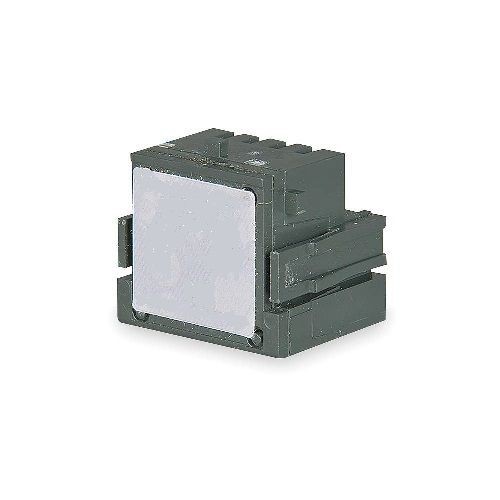

GE Spectra RMS™ Mag-Break® SRPG400A300 Interchangeable Rating Plug, 400 A, 300 A Plug Current, SG-600 Frame

Selected GE Spectra RMS™ Mag-Break® SRPG400A300 Interchangeable Rating Plug, 400 A, 300 A Plug Current, SG-600 Frame
GE Spectra RMS™ Mag-Break® SRPG400A300 Interchangeable Rating Plug, 400 A, 300 A Plug Current, SG-600 Frame

Documents

Short Description

All Spectra, power break and power break II circuit-breakers use UL listed interchangeable rating plugs to establish or change the long time trip point of the circuit-breaker. The key advantage of the rating plug is the flexibility of interchangeable rating plugs across the permissible current ratings of a given circuit-breaker frame. Since the installed rating plug establishes the ampere rating of the breaker, the installer must verify the adequacy of the connected cable and/or bus bar ampacity. The national electric code allows cable size to be matched to the ampere rating established by the rating plug.

Features

  • Adjustable instantaneous trip range 905 to 3060 A
  • Digital, solid state electronic trip

Specification

Maximum Breaker Current Rating
400 A
Minimum Order Qty
1
Order Interval
1
Dimensions
4 in L x 3 in W x 1-3/4 in H
Plug Current Rating
300 A
Series
Spectra™ RMS
Suitable For Use With
SG Series Molded Case Circuit Breakers
Standard & Approvals
CSA LR40350, UL E11592
Catalog ID
G-ESRPG400A300
Breaker Frame Type
SG600
