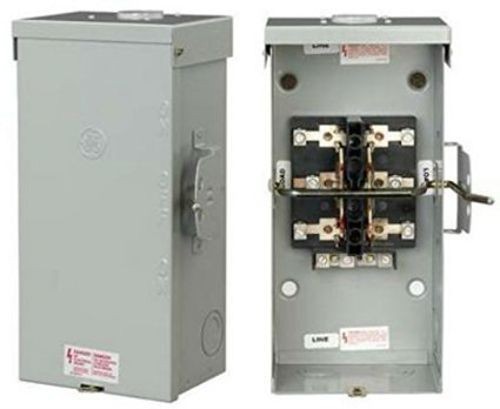

General Electric Spec-Setter™ TC10323R Non-Fusible Double Throw EmerGeneral Electricncy Power Transfer Switch, 120/240 VAC, 100 A, 7 hp, DPDT Contact Form, 2 Poles
General Electric Spec-Setter™ TC10323R Non-Fusible Double Throw EmerGeneral Electricncy Power Transfer Switch, 120/240 VAC, 100 A, 7 hp, DPDT Contact Form, 2 Poles
SKU: G-ETC10323R
Manufacturer Part Number: TC10323R
UPC: 783164000337
Features
- Suitable for use as service entrance equipment when installed in accordance with National Electrical Code
- Plated copper current-carrying parts increase longevity and performance
- Bonding strap can be used to ground neutral for service entrance applications
- Positive make and break is provided by fiber loop straps between knife blade contacts and one piece operating yoke
- Lockable three-position (ON-OFF-ON) handle
- Galvanized steel enclosure with drip shield
- Not quick-make, quick-break
- 60/75 deg C conductor ratings
Specification
| Frequency Rating | 50/60 |
|---|---|
| Material | Steel |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Phase | 3 |
| Voltage Rating | 120/240 V |
| Amperage Rating | 100 A |
| Actuator Type | Handle |
| Contact Form | DPDT |
| Enclosure Type | NEMA 3R |
| Finish | Galvanized |
| Horsepower | 7 hp |
| Standard & Approvals | CSA-C22.2 No 4-04, Federal Specification W-S-865C, NEMA KS1 - 2013, Seismic Certified, UL 98 |
| Application | For Residential or Light Commercial Applications where duty is not severe |
| Type | Non-Fusible Double Throw |
| Series | TC Series |
| Dimensions | 7.2 in W x 5.2 in D x 15.1 in H |
