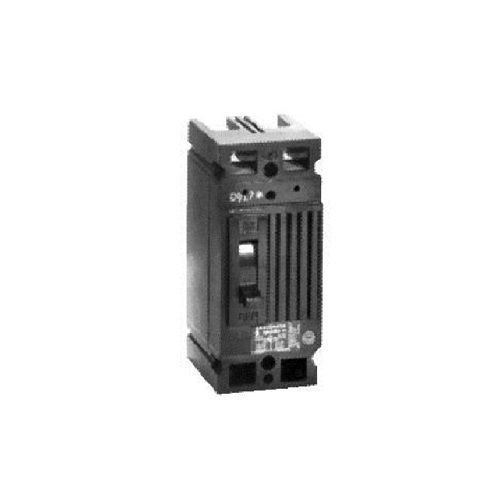

GE TEB122060WL Type TEB Core E Low Tier Molded Case Circuit Breaker, 240 VAC, 60 A, 10 kA Interrupt, 2 Poles, LI/Non-Interchangeable Thermal Magnetic Trip
GE TEB122060WL Type TEB Core E Low Tier Molded Case Circuit Breaker, 240 VAC, 60 A, 10 kA Interrupt, 2 Poles, LI/Non-Interchangeable Thermal Magnetic Trip
SKU: G-ETEB122060WL
Manufacturer Part Number: TEB122060WL
UPC: 783164068672
Documents
Features
- Suitable for reverse feed
- Standard continuous current rated
- Fixed long time
- Fixed instantaneous trip function
- Copper/aluminum wire
- 10 kA at 120/240 VAC/5 kA at 125/250 VDC interrupt rating
Specification
| Frame | E150 |
|---|---|
| Interrupt Rating | 10/5 kA |
| Number Of Poles | 2 |
| Phase | 1 |
| Temperature Rating | 10 to 50 deg C |
| Trip Type | Non-Interchangeable/Thermal Magnetic/LI |
| Type | Type TEB Low Tier |
| Voltage Rating | 240 VAC |
| Application | For industrial applications |
| Standard & Approvals | CSA LR57114, UL E11592 |
| Amperage Rating | 60 A |
| Dimensions | 2-3/4 in W x 3-3/8 in D x 6-5/16 in H |
| Connection Type | Line/Load Lug |
| Includes | TC041, TCAL12, TCAL14 Lugs |
| Wire Size | 14 to 3/12 to 1 AWG |
