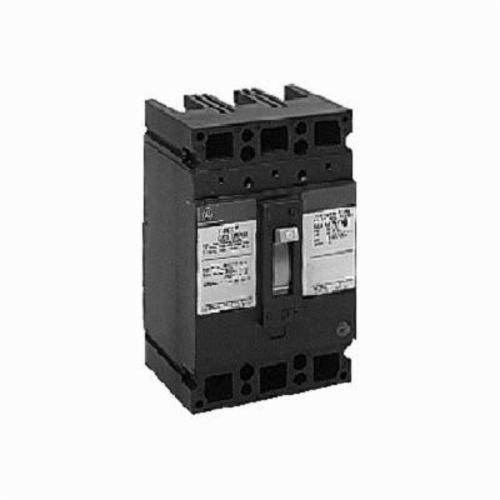

GE TED134040WL Type TED Thermal Magnetic Molded Case Circuit Breaker, 480 VAC/250 VDC, 40 A, 18/10 kA Interrupt, 3 Poles
GE TED134040WL Type TED Thermal Magnetic Molded Case Circuit Breaker, 480 VAC/250 VDC, 40 A, 18/10 kA Interrupt, 3 Poles
SKU: G-ETED134040WL
Manufacturer Part Number: TED134040WL
UPC: 783164063066
Documents
Features
- The WL catalog number suffix indicates that the devices come with Cu/Al line and load lugs
- Non-interchangeable trip
- Core E/mid tier
- 150 A frame
Specification
| Interrupt Rating | 18/10 kA |
|---|---|
| Mounting Type | Bolt-On |
| Number Of Poles | 3 |
| Phase | 3 |
| Temperature Rating | 40 deg C |
| Trip Type | Long Time and Instantaneous |
| Type | Type TED Thermal Magnetic |
| Voltage Rating | 480 VAC/250 VDC |
| Wire Size | 14 to 3 AWG |
| Standard & Approvals | UL E11592, CSA LR57114, HACR Rating |
| Amperage Rating | 40 A |
| Dimensions | 6-5/16 in H x 4-1/8 in W x 3-3/8 in D |
| Connection Type | Line and Load Lug |
