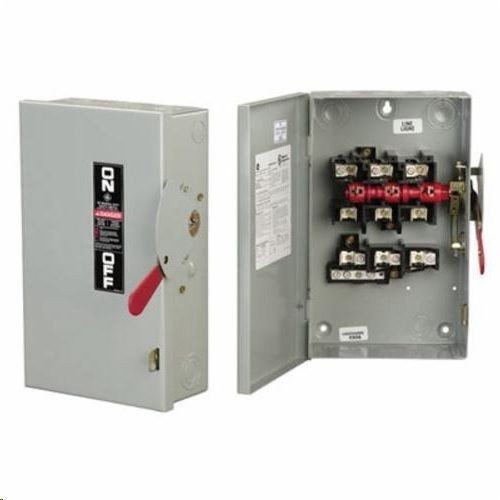

General Electric Spec-Setter™ TG3224 General Duty Fusible Safety Switch, 240 VAC, 200 A, 2 Poles, NEMA 1
General Electric Spec-Setter™ TG3224 General Duty Fusible Safety Switch, 240 VAC, 200 A, 2 Poles, NEMA 1
SKU: G-ETG3224
Manufacturer Part Number: TG3224
UPC: 783164008555
Features
- Direct-drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive ON/OFF indication
- Self-leveling, three-point mounting system
- Integral cover interlock
- Visible confirmation of plated blade contact positions
- Spring reinforced fuse clips assure reliable contact for cool operation
- Suitable for Class H, K, J or R fuses, where applicable
- UL Listed short-circuit rating is 10000 rms symmetrical amps standard
- With Class R fuses and fuse kits installed, 30 to 200 A switches have UL Listed short circuit rating of 100000 rms symmetrical A
- UL Listed as service entrance equipment when installed in accordance with the National Electric Code
Specification
| Frequency Rating | 50/60 |
|---|---|
| Material | Steel |
| Mounting Type | Surface |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Phase | 1 |
| Voltage Rating | 240 V |
| Application | For Residential and Light Commercial Applications where duty is not severe |
| Standard & Approvals | CSA C22.2 No 4-04, cUL Listed, Federal Specification WS-865C, NEMA KS1-2013, Seismic Certified, UL 98 |
| Amperage Rating | 200 A |
| Actuator Type | Handle |
| Type | General Duty Fusible |
| Short Circuit Rating | 100 |
| Series | TG |
| Dimensions | 13.4 in W x 5.2 in D x 29.1 in H |
| Enclosure Type | NEMA 1 Indoor |
| Horsepower | 15 hp Standard Fuse/15 hp Time Delay |
